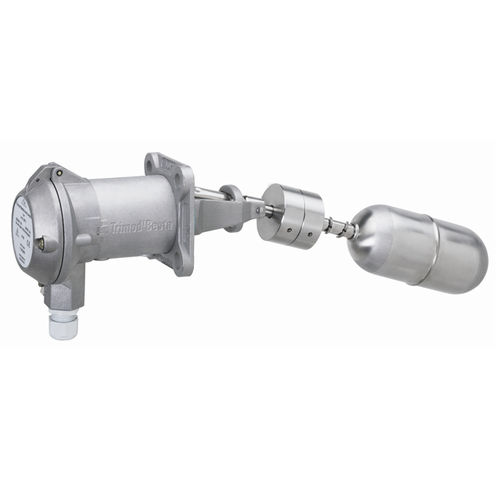

Magnetic float level switch A 01 08T1
for boatsfor tankspump

magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Application domain
for boats
Applications
for tanks, pump

Description

Nominal pressure: PN 25 according to DIN Operating temperature: 0 to 300°C Ambient temperature: 0 to 70°C Density of the heavier liquid: min. 0.8 kg/dm³ Density difference: min. 0.22 kg/dm³ Switching difference: ca. 20 mm Length of rod: 100 mm, 200 mm or 300 mm Weight: ca. 2.4 kg Material wet side: rust free stainless steel (CrNiMo) Material switching module: Seewater resistant die-cast aluminium Square: flange 92 x 92 mm, bolt circle 92 mm Switching element: Microswitch, SPDT with silver contacts Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A Protection class: IP65 Installation length (tank side): 309 mm, 409 mm or 509 mm Safety Integrity Level (SIL): SIL 1 (type AA 01 08T1: SIL 2)
