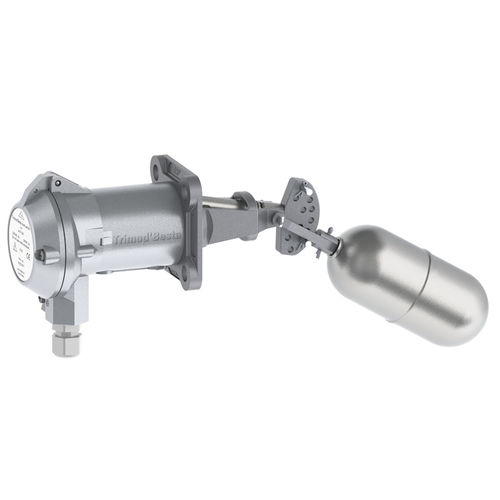

Magnetic float level switch A 01 09 series
for boatsfor tankspump

magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product


Characteristics

Technology
magnetic float
Application domain
for boats
Applications
for tanks, pump

Description

Type A 01 090: switching differential 37 to 218 mm Type A 01 091: switching differential 56 to 317 mm Type A 01 092: switching differential 83 to 442 mm Type A 01 093: switching differential 97 to 557 mm Type A 01 095: switching differential 34 to 190 mm Nominal pressure: PN 25 according to DIN Operating temperature: 0 to 300°C Ambient temperature: 0 to 70°C Density of the liquid: min. 0.75 kg/dm³ Switching differential: adjustable Material wet side: rust free stainless steel (CrNiMo) Material Switching module: Seawater-resistant die-cast aluminium Flange: square 92 x 92 mm, bolt circle 92 mm Switching element: Microswitch, change-over contact (SPDT) with silver contacts Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A Degree of protection: IP65 Fitting length: depending on type 278 to 561 mm Safety Integrity Level (SIL): SIL 1 (Types AA 01 090 - AA 01 095: SIL 2)
