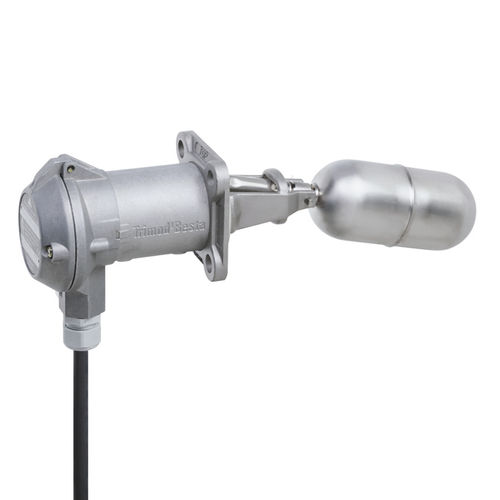

Magnetic float level switch U3A 01 04 / U5A 01 04 / U11A 01 04
for boatsfor tankspump

magnetic float level switch
magnetic float level switch
Add to favorites
Compare this product

Characteristics

Technology
magnetic float
Application domain
for boats
Applications
for tanks, pump

Description

Type U3A 01 04 Type U5A 01 04 Type U11A 01 04 Nominal pressure: PN 25 according to EN/DIN Operating temperature: -30 to 80°C Ambient temperature: -30 to 80°C Density of the liquid: 0.7 kg/dm³ Operating differential: 12 mm, fixed Wetside material: stainless steel (CrNiMo) Housing material: seawater resistant die cast aluminium Flange: square 92 x 92 mm, PCD 92 mm Switch element: Microswitch SPDT with silver contacts Switch rating: 250 VAC, 5 A / 30 VDC, 5 A Enclosure: IP68 Length of encapsulated cable: 3 m, or as required Cable type: Neoprene (H07 RN-F) Safety Integrity Level (SIL): SIL 1 (Types U3AA 01 04, U5AA 01 04, U11AA 01 04: SIL 2)
