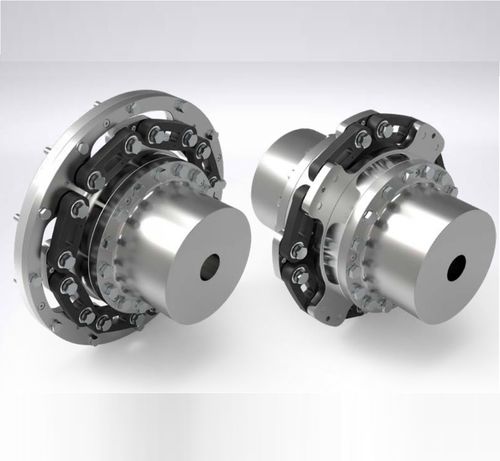

Flexible mechanical coupling TENBEX-ECO
for ships

flexible mechanical coupling
flexible mechanical coupling
flexible mechanical coupling
flexible mechanical coupling
flexible mechanical coupling
flexible mechanical coupling
flexible mechanical coupling
Add to favorites
Compare this product

Characteristics

Type
flexible
Application domain
for ships

Description

The SGF TENBEX-ECO coupling system are torsional-elastic, non-shiftable coupling units that can be used in a wide range of torque transmission applications. They provide effective damping of vibration and torque peaks as well as efficient compensation for radial, axial and angular misalignment. TENBEX-ECO coupling systems utilise a series of strong and durable SGF link elements that are engineered to handle the most rigorous rotational power transmission requirements. Individual SGF link elements are manufactured with extremely strong reinforcement cord inlays (Tenpu fibre technology) and special high grade rubber compounds. Utilising the SGF tension-force principle, torque is transferred almost exclusively by the vulcanised Tenpu cord reinforcement inlays. The rubber supports and protects the cord inlays whilst effectively dampening noise and vibration during operation. The modular design of the TENBEX-ECO link coupling system is available for two types of application connections. Type F for a direct connection to an combustion engine, and Type D for a shaft to shaft connection. The coupling can be combined with optional hubs, spacer and adapter flanges to provide complete fitment versatility without extensive modifications or fur - ther engineering to the equipment. The high power density ratio of the link elements and their strong, durable and resil - ient construction are one of the reasons why the SGF TENBEX-ECO coupling system is the best choice for many arduous Industrial, Marine and Transport applications. It is also an ideal solution for Heavy Machinery such as rock crushers, screw conveyors and milling machines.
