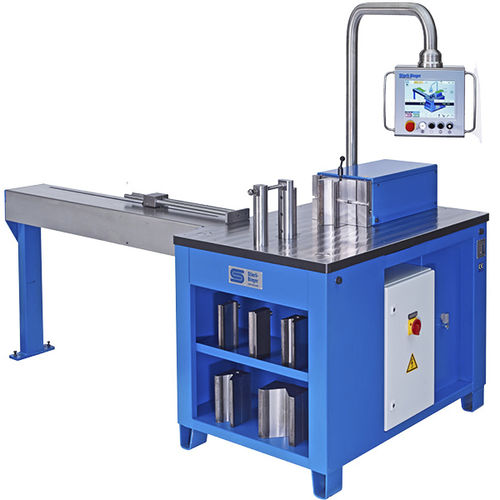

Shipyard bending machine 220 CNC-W

hydraulicprofile

The Stierli-Bieger 220 CNC/W bending centre is a very efficient system that can be equipped with a modern 1 or 2-axis control. The operator can program the system very easily as the screen leads him through the dialog. The required bending angle and stop dimensions can be programmed. The material-related spring back is calculated from bending tables which are saved in the control system and can be adapted or extended as required. In addition, the length before bending and the stop positions are calculated automatically. You can save 100,000 programs with 20 different bends each. Fast and fine speeds are already set in both axes. The 130 mm tool holder and the strong pins with 60 mm diameter enable versatile use and convenient fitting of the simplest tools. Tools that can be changed easily and quickly are used for bending. The very large working plate ensures effective positioning of very large bent parts. The special oil-lubricated guided cylinder requires no maintenance and no open guide! The foot pedal is used to start the bending operation. The modern CNC-W control system corresponds to a modern press brake control system. The large, clear colour touchscreen panel with graphical display offers a multitude of control functions which allow fast programming and production of bent parts. Bent part programming in record time: Direct, fast input of angles and lengths Angle and length measurements as shown on the diagram can be entered either in direct graphical dialog programming or in tabular form.
