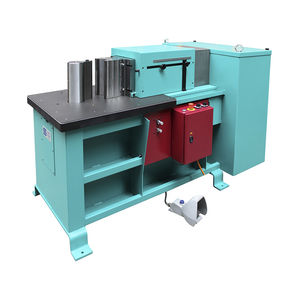

Shipyard bending machine 220 CNC

hydraulicprofiletube

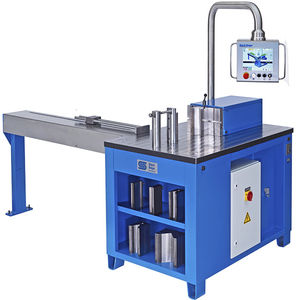

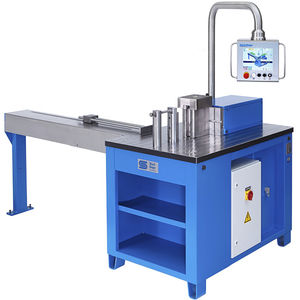

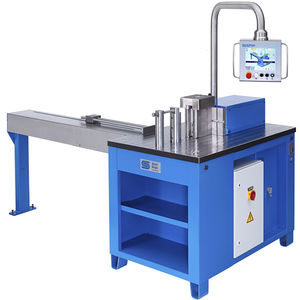

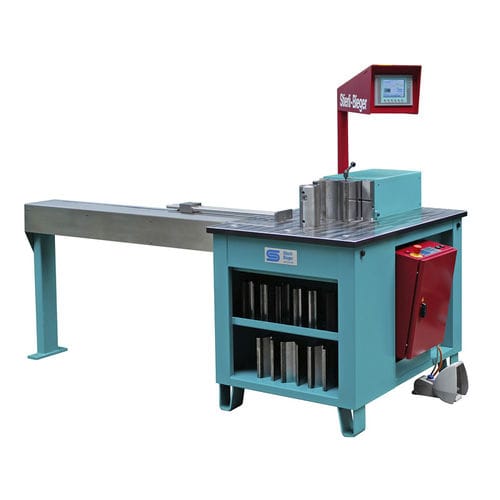

The Stierli-Bieger 220 CNC is a very efficient system that is equipped with a modern touchscreen colour display and 2-axis control. The operator can program the system very easily. The bending angles required can be programmed and adjusted after the first angle. 200 programs can be saved. Other programs can be swapped in via an interface. The stroke setting can be adjusted in the program at any time in +/- 0.1° steps to offset material-related tolerances. It is operated with the foot switch or the special manual control cable, with which jogging mode, automatic mode and the straightening function can be actuated. The 130 mm tool holder and the strong pins with 60 mm diameter enable versatile use and convenient fitting of the simplest tools. The central bending pin holder is reinforced by a hardened steel bushing. Three further holes are for the plug-in pins of the pipe bending or straightening tools. Tools equipped with the quick-change holder are used for bending. The very large working plate ensures effective positioning of very large bent parts. The special oil-lubricated guided cylinder requires no maintenance and no open guide! The machine can be transported easily inside the factory with a crane or pallet truck. Two tool trays provide organised storage of the tools so that they are always to hand. Working power - 22 to / 220 kN Tooling height - 130 mm / 4.72" (inch) Bending capacity flat - 130 x 16 mm Straightening capacity - HEB 100 Pipe bending - 3/8" - 1 ½" Round bar - ø 35 mm Control - CNC Control Program memory - 200 Measuring precision - +/- 0.1 mm Cylinder stroke - 200 mm Smallest U-bend with narrow section punch - 45 mm Cylinder speed - 0.60 m/min
