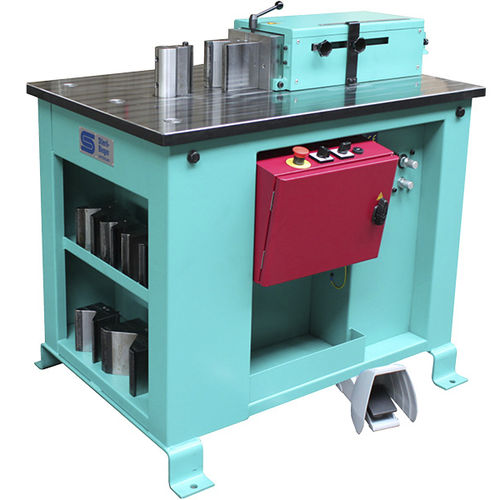

Shipyard bending machine 220 HE

hydraulicprofiletube

The Stierli-Bieger 220 HE is a very efficient and compact horizontal press. The solid steel compound machine plate has a very strong tool holder with a diameter of 60 mm and a depth of 110 mm. An extremely wide range of tasks can be carried out with the 130 mm tools. The central bending pin holder is reinforced by a hardened steel bushing. Three further holes are for the plug-in pins of the pipe bending or straightening tools. The very large working plate ensures effective positioning of very large bent parts. The special oil-lubricated guided cylinder requires no maintenance! The working pressure of 220 kN is delivered with the full stroke length of 200 mm and at full operating speed. The stroke limitation operates electro-hydraulically with the tried and tested Stierli switch-off system with Vernier scale and 0 mark. It is operated with the foot switch or the special manual control cable, with which jogging mode, automatic mode and the straightening function can be actuated. The machine can be transported easily inside the factory with a crane or pallet truck. Two tool trays provide organised storage of the tools so that they are always to hand. Please also note the wide range of tools! Working power - 22 to / 220 kN Tooling height - 130 mm / 5.11" (inch) Bending capacity flat - 130 / 16 mm Straightening capacity - HEB 100 Pipe bending - 3/8" - 1 ½" Round bar - ø 30-35 mm Control - NC control Cylinder stroke - 170 mm Smallest U-bend with narrow section punch - 45 mm Cylinder speed - 0.6 m/min Motor power - 3.0 kW Voltage - 400 V / 50 Hz (andere Spannungen od Dimension - 1100 / 800 m Weight - 650 kg Color - NCS 3050 blue-green NCS 4050 wine red Installation - mobil
