marine radio / fixed / VHF / submersible

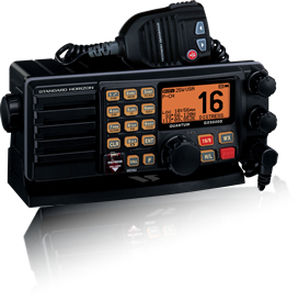

Quantum GX5500S



  • Application domain:


  • Type:


  • Network:


  • Protection level:

    submersible, IPX7

  • Function:

    with DSC, with integrated GPS, with intercom



30 Watt PA/Loud Hailer with preprogrammed fog signals and listen back
Bass and Treble tone control
IUT-R M493-12 VHF with commercial grade 80dB receiver
Full dot matrix LCD display
Submersible JIS-7 / IPX7 (3.3 feet for 30 minutes)
Independent Channel 70 receiver built-in for continuous DSC watch
LAT/LON, SOG and COG shown on display when connected to GPS
Removable ClearVoice noise canceling speaker mic with channel selection and 16/9 key
Front panel speaker microphone can be relocated to rear panel using optional MEK-4
Versatile user-programmable scanning, priority scan and Dual Watch
Voice Scrambler (optional)
One-button access to Channel 16 and 9
Large rotary knobs, and oversized display
Capable of connecting to RAM3+ second station optional Remote Access Mic
Intercom between radio and second station microphone
Overall Dimensions: 3.5"H x 9.1"W x 5.9"D
Flush Mount Cutout: 2.8"H x 8.1"W
3-Year Waterproof Warranty
