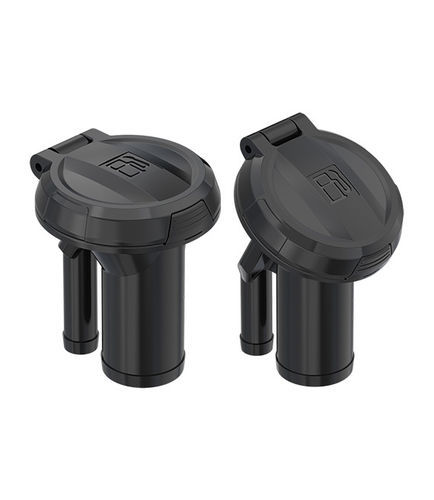

Threaded deck fill SFCG2-38-04

nylon

Product Overview
Deck Filler with Vent (04 Series): water tank cover, yacht water inlet, water injection port, marine accessory for fuel and water fill applications on recreational and commercial vessels.

Variants and Mounting

• Model: Straight / Angled
• Mounting Hole Size: 2-3/4" x 2-3/16" (69.8 x 56.2 mm)
• Materials: PA66+33%GF

Compatibility
Fits standard 1-1/2" (38 mm) fuel fill hose and 5/8" (16 mm) vent hose.

More benefits & features

• Fits standard 1-1/2" fuel fill hose and 5/8" vent hose
• Includes rubber O-ring to prevent leakage of fuel or water

Standard configurations
Model list: SFCG2-38-04, SFCD2-38-04, SFCW2-38-04, SFCG2-38-04A, SFCD2-38-04A, SFCW2-38-04A
Body: Straight (SFCG2-38-04, SFCD2-38-04, SFCW2-38-04) | Angled (SFCG2-38-04A, SFCD2-38-04A, SFCW2-38-04A)
Type: Gas / Diesel / Water variants (available across Straight and Angled models)
Fill Hose Size: 1-1/2" (38 mm)
Vent Hose Size: 5/8" (16 mm)
Mounting Hole Size: 2-3/4" x 2-3/16" (69.8 x 56.2 mm)
Material: PA66+33%GF

Technical specifications

• Product title: Deck Filler with Vent (04 Series)
• Model options: Straight / Angled
• Standard models: SFCG2-38-04 / SFCD2-38-04 / SFCW2-38-04 / SFCG2-38-04A / SFCD2-38-04A / SFCW2-38-04A
• Body: Straight and Angled variants
• Type: Gas, Diesel and Water variants
• Fill hose size: 1-1/2" (38 mm)
• Vent hose size: 5/8" (16 mm)
• Mounting hole size: 2-3/4" x 2-3/16" (69.8 x 56.2 mm)
• Material: PA66 + 33% glass fiber (PA66+33%GF)
• Sealing: Includes rubber O-ring to prevent fuel/water leakage
