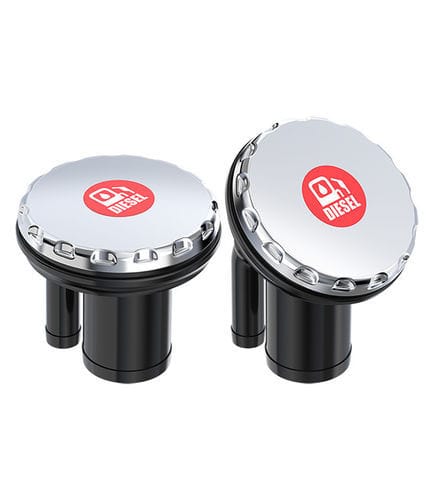

Threaded deck fill SFCG3-38-06

fuel tanknylonplastic

Product overview
Deck filler with vent for water and fuel tanks, designed for marine applications. Stainless steel (SUS316) cover with PA66 base reinforced with 33% glass fiber. Compatible with standard yacht fill and vent hoses.

Features

• Body: Straight / Angled
• Fits standard 1-1/2" fuel fill hose and 5/8" vent hose
• Mounting hole size: 1-1/4" x 2-1/4" (32 x 57 mm)
• Material: SUS316 cover + PA66 + 33% glass fiber

Standard configurations

• SFCG3-38-06 — Straight — Gas
• SFCD3-38-06 — Straight — Diesel
• SFCW3-38-06 — Straight — Water
• SFCG3-38-06A — Angled — Gas
• SFCD3-38-06A — Angled — Diesel
• SFCW3-38-06A — Angled — Water

Dimensions
Fill hose size: 1-1/2" (38 mm)
Vent hose size: 5/8" (16 mm)
Mounting hole size: 1-1/4" x 2-1/4" (32 x 57 mm)

Technical specifications

• Body options: Straight or Angled
• Compatible hoses: 1-1/2" fuel fill hose and 5/8" vent hose
• Mounting hole size: 1-1/4" x 2-1/4" (32 x 57 mm)
• Fill hose size: 1-1/2" (38 mm)
• Vent hose size: 5/8" (16 mm)
• Material: SUS316 (cover) + PA66 + 33% glass fiber
• Available model codes: SFCG3-38-06, SFCD3-38-06, SFCW3-38-06, SFCG3-38-06A, SFCD3-38-06A, SFCW3-38-06A
