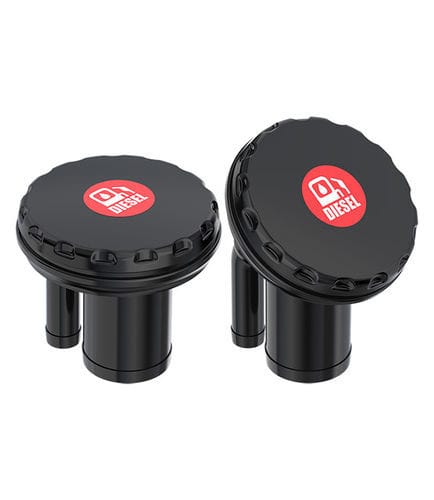

Threaded deck fill SFCG2-38-06

nylonplastic

Product overview
Deck filler with integrated vent for marine applications. Designed for use as yacht water inlet or fuel/water fill port. Suitable for deck or hull installation with standard cut-out dimensions.

Features

• Compatible with 1-1/2" (38 mm) fill hose and 5/8" (16 mm) vent hose

Body / Options
Straight / Angled

Additional notes
Available for gas, diesel and water configurations. Material: PA66+33%GF. Mounting hole: 1-1/4" x 2-1/4" (32 x 57 mm).

Standard configurations

• Models: SFCG2-38-06 | SFCD2-38-06 | SFCW2-38-06 | SFCG2-38-06A | SFCD2-38-06A | SFCW2-38-06A
• Body: Straight (first three) | Angled (last three)
• Type: Gas | Diesel | Water | Gas | Diesel | Water
• Fill hose size: 1-1/2" (38 mm)
• Vent hose size: 5/8" (16 mm)
• Mounting hole size: 1-1/4" x 2-1/4" (32 x 57 mm)
• Material: PA66+33%GF

Technical specifications

• Body: Straight / Angled
• Mounting hole: 1-1/4" x 2-1/4" (32 x 57 mm)
• Material: PA66+33%GF
• Fill hose size: 1-1/2" (38 mm)
• Vent hose size: 5/8" (16 mm)
