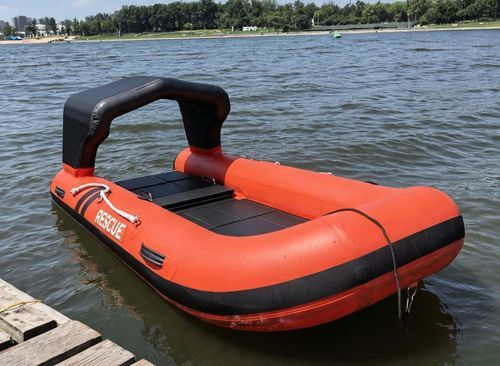

Patrol marine drone HV235S

rescueremote-controlledelectric

Product Overview
The HV235S is a remote-controlled fast rescue boat based on the HV235 platform, equipped with an integrated self-righting system that automatically returns the craft upright after a capsize. Key operational attributes include water-jet propulsion (no exposed propeller), 5-second battery hot-swap for continuous operation, air-deployable stowed dimensions, and an unsinkable hull with an extra-large deck to accommodate casualty recovery. Overall length 2,350 mm, dry weight approximately 50 kg, top speed around 40 km/h, designed for rapid-response rescue in rough water conditions.

Key Features

• Integrated self-righting system — automatic upright recovery after capsize to maintain mission continuity in rough seas
• Water-jet propulsion — no exposed propeller, eliminating secondary-injury risk to swimmers and casualties
• 5-second battery hot-swap — enables continuous 24/7 operations with spare batteries
• Air-deployable — compact stowed size (1100 × 550 × 300 mm) suitable for helicopter and drone airdrop
• Unsinkable design — inherent buoyancy prevents sinking even when fully flooded
• Extra-large deck — supports one casualty lying flat with side and stern boarding options for rapid recovery
• Remote visual search capable — compatible with camera, searchlight, and speaker modules
• Rapid deployment — quick-inflation system allows operation within minutes; single-person transport possible

Technical Specifications
Model: HV235S
Overall Length (inflated): 2,350 mm
Overall Width (inflated): 1,020 mm
Overall Height (inflated): 920 mm
Stowed Size (deflated): 1,100 × 550 × 300 mm
Tube Material: High-grade marine PVC (UV-resistant)
Dry Weight: ~50 kg
Max Load Capacity: >150 kg
Max Speed (unloaded): ~40 km/h
Max Speed (1 person): ~20 km/h
Cruising Range: >20 km
Propulsion: Water-jet drive (no exposed propeller)
Self-Righting: Integrated self-righting device — automatic upright recovery
Battery System: 5-second hot-swap for continuous 24/7 operation
Remote Control Range: >2 km
Deployment Platforms: Air-droppable — drones, helicopters, ships
Customization: Size and configuration adjustable per customer requirements

Applications

• Lifeguard and beach rescue
• Flood and inland water rescue
• Maritime and port security
• Man-overboard recovery
• Military and coast guard operations

Caractéristiques / spécifications techniques

• Code: HV235S
• Series: HV High-Speed Rescue Boat Series
• Spec (inflated): 2350×1020×920 mm
• Material: High-grade Marine PVC (UV-resistant)
• Color: Orange / Custom
• Brand: HVON
• Model: HV235S
• Description: Remote-controlled fast rescue boat with integrated self-righting system, water-jet propulsion, 5-second battery hot-swap
