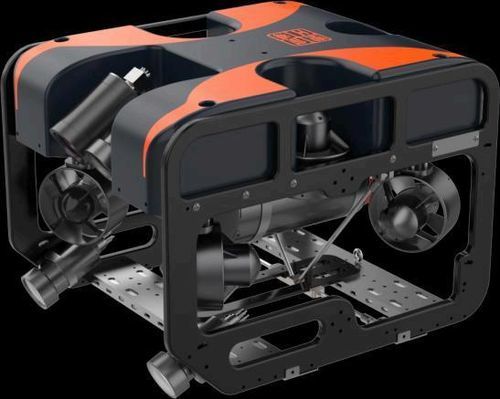

Intervention ROV R1-30

for pipeline inspectionobservationfor aquaculture

Product Brief
R1-30 is an underwater observation ROV engineered for operation in demanding environments. Rated to 300 m, the vehicle features an anodized aluminum hull, 4 vector-layout horizontal thrusters and 2 vertical thrusters (each up to 6.5 kgf), a 1080P Full HD camera with 4× optical zoom and ±90° pan-tilt, and three dimmable LED lights totaling 21,000 lumens. The integrated control console includes a 17.3" display, Intel i7 processor and pre-installed control software with auto-depth, auto-heading and 10-level speed adjustment. Standard delivery: FOB Qingdao.

Product Overview
The R1-30 hull and frame are optimized via CAD and CFD for reduced hydrodynamic resistance and stable handling. Vector-distributed horizontal thrusters enable precise lateral control. The platform integrates image enhancement and target-recognition capabilities for inspection, search and research tasks. Custom configurations and additional sensors are available on request.

Key Features

• 300 m depth rating — suitable for professional inspection and survey missions
• Six thrusters — 4 horizontal (vector-layout) + 2 vertical; each thruster up to 6.5 kgf
• Full HD camera — 1080P color sensor with 4× optical zoom (2.8–12 mm), 110° FOV, ±90° pan-tilt
• High-output lighting — 3 dimmable LEDs, total 21,000 lumens for low-visibility conditions
• Integrated control console — 17.3" FHD display, Intel i7 CPU, pre-installed control software with auto-depth and auto-heading
• Continuous operation — external power via tether supports 24/7 missions
• Tether system — 150 m zero-buoyancy Kevlar-reinforced cable (300 kgf breaking strength); manual winch; custom lengths available

Technical Specifications (summary)

• Model: R1-30
• Dimensions (L×W×H): 500 mm × 398 mm × 356 mm
• Weight: 21 kg
• Max depth rating: 300 m
• Max forward thrust: 20 kgf
• Payload capacity: 3 kgf
• Speed: 1.5 m/s
• Thrusters: 4 horizontal (vector) + 2 vertical
• Hull material: Anodized aluminum; Frame: HDPE + seawater-resistant carbon fiber
• Buoyancy: Glass microspheres
• Power supply: External via tether

Camera & Lighting
Camera: 1080P Full HD color (approx. 2 MP). Optical zoom: 4× (2.8–12 mm). Field of view: 110° wide-angle. Pan-tilt range: ±90° vertical. Lighting: 3 × 7,000 LM LED, continuously dimmable.

Control Console (Model: 1SPro-B)
Weight: 50 kg. Dimensions: 760 mm × 630 mm × 370 mm. Display: 17.3", 1920×1080, 500 cd/m². Processor: Intel i7-9700K. Memory / Storage: 8 GB RAM / 256 GB SSD. Input / Output: 220 VAC / 380 VDC. Rated power: 3000 W.

Tether System (Model: UCS150-12)
Standard length: 150 m (custom lengths available). Cable diameter: 12 mm. Breaking strength: 300 kgf (Kevlar reinforced). Winch type: Manual.

Applications

• Underwater inspection and survey
• Search and recovery operations
• Marine research and data collection
• Pipeline and infrastructure inspection
• Security and surveillance
• Aquaculture monitoring

Technical specifications

• Model: R1-30
• Series: ROV Series
• Dimensions: 500 mm × 398 mm × 356 mm
• Weight: 21 kg
• Max depth: 300 m
• Thrusters: 6 (4 horizontal vector + 2 vertical), each 6.5 kgf
• Max forward thrust: 20 kgf
• Payload capacity: 3 kgf
• Speed: 1.5 m/s
• Camera: 1080P Full HD, 4× optical zoom, 110° FOV, ±90° pan-tilt
• Lighting: 21,000 LM total (3 × 7,000 LM), dimmable
• Hull: Anodized aluminum; Frame: HDPE + carbon fiber
• Tether: 150 m zero-buoyancy Kevlar-reinforced cable (300 kgf breaking strength), 12 mm diameter
• Control console: 17.3" FHD display, Intel i7 CPU, 8 GB RAM, 256 GB SSD
• Power input (console): 220 VAC / 380 VDC; rated power 3000 W
