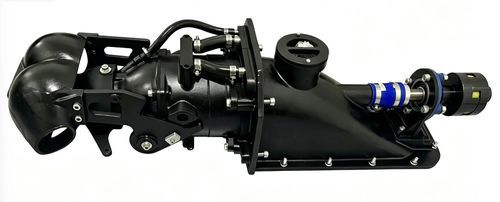

Yacht water-jet drive HJ160

for motor boatsaluminum

Product Overview
The HJ160 water jet pump delivers 500 kg of thrust from a compact 30 kg unit. With a 160 mm impeller and support for 90–200 HP engines, it is an ideal propulsion solution for high-speed rescue boats, motorboats, yachts and unmanned surface vessels. The enclosed waterjet design enables safe operation in shallow water and in areas with weeds, with no exposed propeller. FOB Qingdao — ships in 2 weeks.

Product Details
Code: HJ160-WJP
Series: HJ
Model: HJ160
Brand: HVON
Description: Water Jet Propulsion System
Material: High-Strength Aluminum Alloy
Color: Black

Key Specifications
Impeller Diameter: 160 mm
Maximum Thrust: 500 kg
Matched Power Range: 90–200 HP
Max Rated Speed: 6,500 RPM
Dry Weight: 30 kg
Overall Dimensions: 1,000 × 300 × 270 mm (L×W×H)
Water Inlet Size: 510 × 300 × 270 mm (L×W×H)

Key Advantages

• Shallow water capable — No protruding propeller allows operation in water as shallow as 300 mm.
• Weed & debris resistant — Enclosed intake reduces fouling from seaweed, nets and floating debris.
• High thrust-to-weight — 500 kg thrust from a 30 kg unit provides rapid acceleration and planing.
• Enhanced safety — No exposed propeller reduces risk to swimmers, divers and marine life.
• Low maintenance — Simplified design with easy access to impeller and wear ring.

Applications
High-speed rescue boats, motorboats, pleasure yachts, USVs (unmanned surface vessels), river and shallow-water craft, survey and patrol boats.

Compatible Engine
Can be paired with a 197 HP turbocharged gasoline engine (USD 5,500 FOB Qingdao) for a complete propulsion system.

Technical characteristics

• Code: HJ160-WJP
• Series: HJ
• Model: HJ160
• Brand: HVON
• Impeller Diameter: 160 mm
• Maximum Thrust: 500 kg
• Matched Power Range: 90–200 HP
• Max Rated Speed: 6,500 RPM
• Dry Weight: 30 kg
• Overall Dimensions: 1,000 × 300 × 270 mm (L×W×H)
• Water Inlet Size: 510 × 300 × 270 mm (L×W×H)
• Material: High-Strength Aluminum Alloy
• Color: Black
• Description: Water Jet Propulsion System
• Shipping: FOB Qingdao, ships in 2 weeks
