Battery controller FT85CSmotorpropulsionunderwater
Add to favorites
Compare this product
Characteristics
- Applications
- for battery, motor, propulsion
- Application domain
- underwater, marine, watersports boat, boat, surf
- Type
- programmable, data communication
- Amperage
Min.: 150 A
Max.: 250 A
Description
Overview

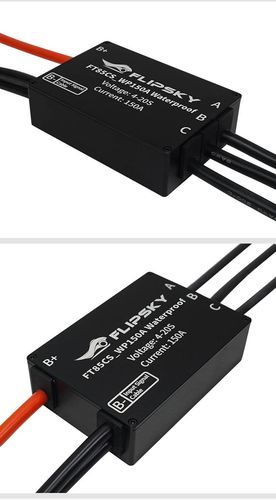

The FT85CS waterproof ESC is engineered for high-power electric water-sports and compact marine propulsion. It accepts 4–20S battery packs (14–85V) and delivers a stable 150A continuous current with 250A peak capability, suitable for electric surfboards, underwater thrusters and small remote vessels.
Key Features
Technical specifications (summary)
Model: FT85CS Waterproof 150A ESC
Operating voltage: 14–85V (4–20S safe range)
Continuous current: 150A at 85V (dependent on external heat dissipation)
Peak current: 250A
BEC output: 5V / 1A
Power cable: 8AWG
Motor cable: 8AWG
Dimensions: 93.8 x 63 x 26 mm
Communication ports: USB / CAN / UART / PPM / ADC
Firmware: V1.6 or above (supports FLIPSKY ESC TOOL)
Control signal: PPM, ADC, UART
Supported modes: Sensorless modes: IPDS, HFPI, OPEN
Typical Applications
Specifications / Technical details
The FT85CS waterproof ESC is engineered for high-power electric water-sports and compact marine propulsion. It accepts 4–20S battery packs (14–85V) and delivers a stable 150A continuous current with 250A peak capability, suitable for electric surfboards, underwater thrusters and small remote vessels.
Key Features
- Waterproof design for marine and water-sports propulsion projects
- Wide operating voltage: 14–85V (compatible with 4–20S battery systems)
- 150A continuous current; 250A peak current
- Multiple communication/control interfaces: USB, CAN, UART, PPM, ADC
- PWM variable frequency control, regenerative braking and multi-gear speed limiting
- Supports current, duty-cycle and speed control modes
- Integrated protections: low-voltage, over-voltage, MOS over-current, battery over-discharge and MOS over-temperature
Technical specifications (summary)
Model: FT85CS Waterproof 150A ESC
Operating voltage: 14–85V (4–20S safe range)
Continuous current: 150A at 85V (dependent on external heat dissipation)
Peak current: 250A
BEC output: 5V / 1A
Power cable: 8AWG
Motor cable: 8AWG
Dimensions: 93.8 x 63 x 26 mm
Communication ports: USB / CAN / UART / PPM / ADC
Firmware: V1.6 or above (supports FLIPSKY ESC TOOL)
Control signal: PPM, ADC, UART
Supported modes: Sensorless modes: IPDS, HFPI, OPEN
Typical Applications
- Electric surfboards and electric jetboards
- Underwater thruster control
- Small USV and RC boat propulsion systems
- Waterproof DIY electric propulsion projects
Specifications / Technical details
- Code: FT85CS
- Series: Marine Propulsion Components
- Spec: 150A
- Material: Aluminum alloy housing
- Color: BLACK
- Brand: FLIPSKY
- Model: FT85CS
- Operating voltage: 14–85V (4–20S)
- Continuous current: 150A (at 85V, dependent on heat dissipation)
- Peak current: 250A
- BEC output: 5V / 1A
- Power & Motor cables: 8AWG
- Dimensions: 93.8 x 63 x 26 mm
- Communication interfaces: USB, CAN, UART, PPM, ADC
- Firmware: V1.6+ (supports FLIPSKY ESC TOOL)
- Control signals: PPM, ADC, UART
- Supported sensorless modes: IPDS, HFPI, OPEN
