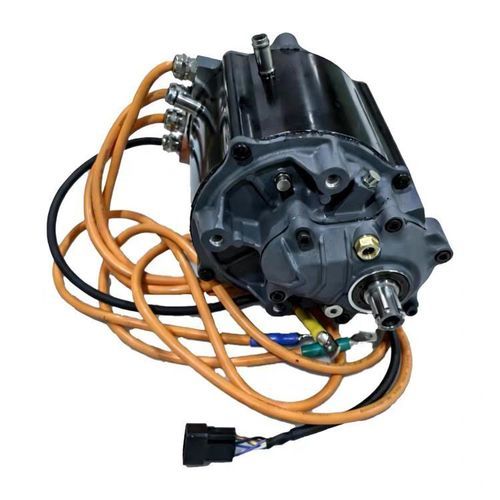

Propulsion engine 1327C(X)SJ

electricfor boatfor tenders

Product Overview
The Mackerel Shark series is a high-efficiency IPM (Interior Permanent Magnet) motor assembly designed for demanding high-speed electric propulsion applications. It combines a high-performance IPM motor with an advanced water-cooled controller rated at IP67, optimized for electric watercraft and high-speed e-vehicles.

Key Features

• High Torque Density: Peak torque up to 70 N·m in a compact form factor
• Three Power Levels: 30 kW, 40 kW, 50 kW peak power variants
• Advanced Controller: Water-cooled controller, IP67 rated, peak efficiency 97%
• Flexible Sensor Options: Magnetic Encoder, Hall Effect, or Sensorless operation
• Wide Voltage Range: 60–137 V DC operating range
• Rugged Design: Class H insulation, thermal protection at 90°C, operating temperature –25°C to +85°C
• Standards: Compliant with QC/T 792-2022

Applications

• Electric marine propulsion (small craft, tenders, dinghies)
• High-speed electric motorcycles and scooters
• Electric karts and recreational vehicles
• Custom electric propulsion systems

Installation
The motor assembly should be mounted horizontally with a rigid connection to the frame/chassis. The UVW high-voltage cable (6 AWG, ≥1000 mm) is included and can be customized to requirements.

Environmental Specifications

• Operating temperature: –25°C to +85°C
• Storage temperature: –25°C to +85°C
• Humidity: 0% to 95% RH
• Controller protection: IP67 (dust-tight and waterproof)

Standards & Compliance
Meets QC/T 792-2022 — Drive motor and controller for electric motorcycles and mopeds. Product specifications may change; refer to official technical drawings for the latest status.

Price Note
FOB Qingdao, USD 2,380 is indicated for model 30J.

Caractéristiques / Spécifications techniques

• Code: 1327C(X)SJ
• Series: Mackerel Shark
• Model (commercial designation): 1327C(X)SJ
• Spec / Variants: 30J / 40J / 50J
• Peak Power Options: 30 kW, 40 kW, 50 kW
• Peak Torque: up to 70 N·m
• Material / Motor Type: IPM (Interior Permanent Magnet)
• Color: Black / Silver (as shown)
• Brand: Ryder Power
• Description: High-performance IPM motor assembly for electric propulsion
• Controller: Water-cooled, IP67, peak efficiency 97%
• Operating Voltage Range: 60–137 V DC
• Insulation Class: H
• Thermal Protection: 90°C
• Position Sensor Options: Magnetic Encoder / Hall / Sensorless
• Operating Temperature Range: –25°C to +85°C
• Storage Temperature Range: –25°C to +85°C
• Humidity: 0%–95% RH
• Cable: UVW high-voltage cable included (6 AWG, ≥1000 mm)
• Mounting: Horizontal with rigid chassis/frame connection
• Compliance: QC/T 792-2022
• Price Example: FOB Qingdao USD 2,380 (for 30J model)
