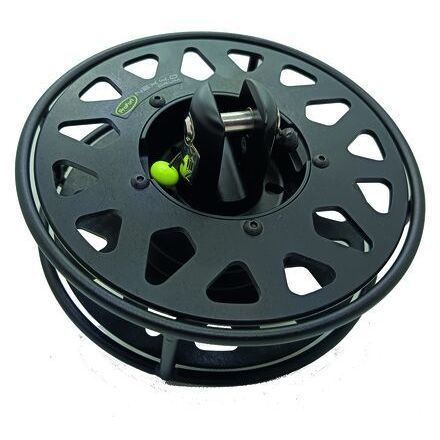

Sailboat furler NEX4.0DRUM

headsailgenoajib

Description
The NEX furler is also available in a drum version. The NEX Drum Furler is designed for easy integration into a wide range of deck layouts thanks to its single furling line. Its optimised drum diameter provides smooth, effortless furling while remaining compact to maximise the available luff length. A wide range of end fittings—including an eye, a halyard block and a solid sheave—ensures simple integration on all types of boats.

Why choose a NEX Furler?

• Fast and easy sail handling.
• Quick and intuitive installation for efficient sail setup.
• Proven, reliable technology tested in demanding sailing conditions.
• Maintenance-free operation.
• Compact, modern design for optimized luff length.

Technical description
Type of sails: solent, staysail, gennaker, code 0
Drum capacity (turns number): 34

Components

• Lower drum unit
• Top swivel
• Snap shackle (lower terminal)
• D shackle (upper terminal)

Technical information

• Sailing program: Cruising, racing, offshore racing
• Light sail area (m²): 140
• Storm sail area (m²): 45
• Working load (kg): 4500
• Spool diameter (mm): 220
• Pin diameter (mm): 12
• Furling line diameter (mm): 8
• Weight (g): 2.34
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Options available: Eye, halyard block, MXEVO halyard shackle, solid sheave, swivel lock 4.0T
• A (mm): 115
• B (mm): 220
• C (mm): 19
• D (mm): 82.7
• E (mm): 50
• F (mm): 33
• G (mm): 12

Characteristics / Technical specifications

• Model: NEX4.0DRUM
• Working load (as in title): 4000 kg
• Working load (technical info): 4500 kg
• Max light sail area: 140 m²
• Storm sail area: 45 m²
• Drum capacity (turns): 34
• Spool diameter: 220 mm
• Pin diameter: 12 mm
• Furling line diameter: 8 mm
• Weight: 2.34 g
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Standard supply: lower drum unit, top swivel, snap shackle, D shackle
