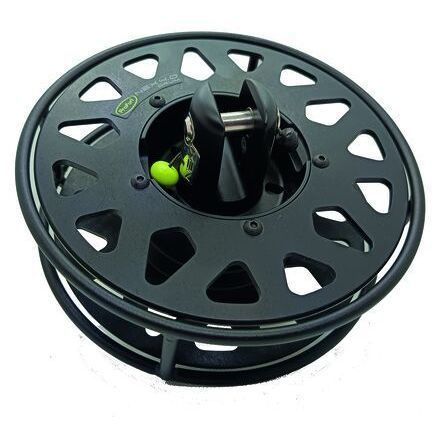

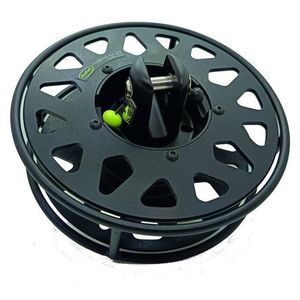

Sailboat furler NEX6.5DRUM

headsailgenoajib

Description
The NEX Drum Furler is the drum version of the NEX furling system, engineered for single-line furling and compact deck integration. Its optimized drum diameter delivers smooth, low-effort furling while preserving maximum luff length. Multiple end-fitting options (eye, halyard block, solid sheave) simplify installation on a variety of boats.

Why choose a NEX Furler?

• Fast and easy sail handling
• Quick, intuitive installation for efficient sail setup
• Proven, reliable technology tested in demanding sailing conditions
• Maintenance-free operation
• Compact, modern layout for optimized luff length

Technical description
Suitable sails: solent, staysail, gennaker, code 0
Drum capacity (turns): 45 (furling line Ø 8 mm) or 25 (furling line Ø 10 mm)

Components
The NEX Drum Furler is supplied as standard with:

• Lower drum unit
• Top swivel
• Trigger snap shackle (lower terminal)
• D shackle (upper terminal)

Technical information
Sailing program: cruising, racing, offshore racing
Light sail area (m²): 240
Storm sail area (m²): 65
Working load (kg): 6500
Spool diameter (mm): 240
Pin diameter (mm): 14
Furling line diameter (mm): 8
Weight (g): 3.13
Upper terminal: D shackle
Lower terminal: Trigger snap shackle
Warranty: 3 years
Options available: Eye, halyard block, solid sheave, swivel lock 6.5T
A (mm): 126
B (mm): 240
C (mm): 25.1
D (mm): 97.7
E (mm): 60
F (mm): 39
G (mm): 14

Specifications

• Model: NEX6.5DRUM
• Working load: 6500 kg
• Max light sail area: 240 m²
• Storm sail area: 65 m²
• Spool diameter: 240 mm
• Pin diameter: 14 mm
• Furling line diameter: 8 mm
• Drum capacity: 45 turns (8 mm line) or 25 turns (10 mm line)
• Weight: 3.13 g
• Upper terminal: D shackle
• Lower terminal: Trigger snap shackle
• Standard supply: lower drum unit, top swivel, trigger snap shackle, D shackle
• Options: Eye, halyard block, solid sheave, swivel lock 6.5T
• Warranty: 3 years
• Dimensions: A=126 mm, B=240 mm, C=25.1 mm, D=97.7 mm, E=60 mm, F=39 mm, G=14 mm
