Sailboat furler NEX2.5DRUM

headsailgenoaspinnaker

Description

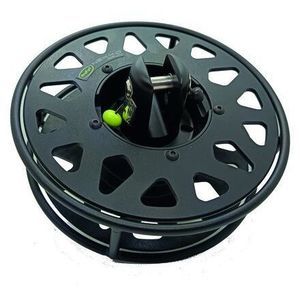

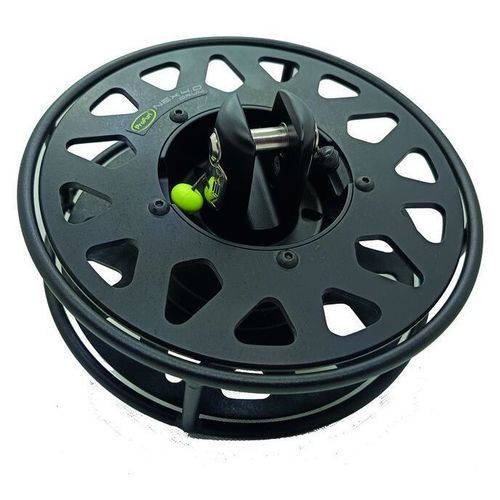

The NEX furler is also available in a drum version. The NEX Drum Furler is designed for easy integration into a wide range of deck layouts thanks to its single furling line. Its optimised drum diameter provides smooth, effortless furling while remaining compact to maximise the available luff length. A wide range of end fittings—including an eye, a halyard block and a solid sheave—ensures simple integration on all types of boats.

Why choose a NEX Furler?

• Fast and easy sail handling.
• Quick and intuitive installation for effortless sail setup.
• Proven, reliable technology tested in the most demanding sailing conditions.
• Maintenance-free.
• Modern design.

Technical description
Type of sails: solent, stay sail, gennaker, code 0
Drum capacity (turns number): 26

Components
The NEX Drum Furler is supplied as standard with:

• Lower drum unit
• Top swivel
• Snap shackle
• D shackle

Technical information
Sailing program: Cruising, racing, offshore racing
Light sail area (m²): 80
Storm sail area (m²): 30
Working load: 2500
Spool diameter (mm): 200
Pin diameter (mm): 10
Furling line diameter (mm): 8
Weight (g): 1.74
Upper terminal: D shackle
Lower terminal: Clevis pin snap shackle
Warranty: 3 years
Options available: Eye, halyard block, MXEVO halyard shackle, solidsheave, swivel lock 2.5T
A (mm): 100.2
B (mm): 200
C (mm): 18
D (mm): 68.3
E (mm): 42
F (mm): 26
G (mm): 10

Features / technical specifications

• Model: NEX2.5DRUM
• Working load: 2500 Kg
• Max light sail area: 80 m²
• Storm sail area: 30 m²
• Drum capacity: 26 turns
• Spool diameter: 200 mm
• Pin diameter: 10 mm
• Furling line diameter: 8 mm
• Weight: 1.74 g (as shown)
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Standard supply: lower drum unit, top swivel, snap shackle, D shackle
• Warranty: 3 years
• Available end fittings/options: Eye, halyard block, MXEVO halyard shackle, solid sheave, swivel lock 2.5T
