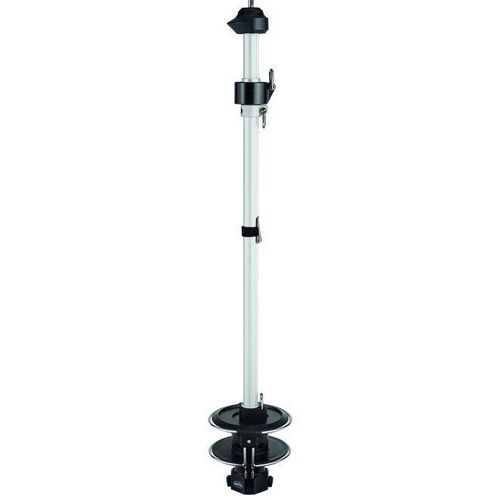

Sailboat furler C420SP

for cruising sailboatsheadsailgenoa

Description
The C420SP is a below-deck manual headsail furler from Profurl's Cruising range. It provides an aesthetic, low-profile installation while optimising luff alignment for improved sail performance. The tack point is height-adjustable. Maximum forestay diameter: 10 mm (rod #22). Standard finish: colourless anodized round extrusions. Delivered with a 10-year warranty.

Technical description
Profurl furling systems
Profurl technology ensures long-term reliability. Mechanisms incorporate specialised sealed bearings able to furl sails in all conditions while resisting corrosion and contamination.

High performance systems

• Extrusions use a special 6106 alloy and internal reinforcement to reduce weight while maintaining strength.
• Ball bearings optimised for an ideal weight/resistance ratio.
• Wichard opening pre-feeder supplied as standard on Racing models to speed up hoisting.

Reliable and maintenance free

• Ball bearings are high-strength 100 C6 carbon steel, sealed in a grease bath to increase working load and prevent corrosion.
• Watertightness is achieved by two double-lip seals to keep out salt, sand, dust and water.
• Non-deformable plastic drums resist impacts (anchor bumps, collisions) and UV exposure.

Ease of use

• The standard feeder allows sail hoisting by a single crew member.
• The optional opening pre-feeder (Wichard) guides the luff tape into the extrusion for fast hoisting and can be reattached to the luff tape without removing the headsail.

Safety of use

• Double cage drum arms (exclusive to Profurl) prevent the furling line from jumping off the drum and allow easy realignment by pulling the line.
• Stainless steel locking devices are available for flush-to-deck installations.

Reliability of materials

• Bearings: high-strength 100 C6 carbon steel, sealed in grease bath.
• Drums: high-impact, non-deformable plastic, UV resistant.
• Extrusions: 6106 alloy aluminium for excellent weight/resistance ratio.
• Feeder / opening pre-feeder: stainless steel 316L.

Components
This product includes a drum, a complete set of grey rounded extrusions, a swivel and a turnbuckle cylinder. Standard delivery includes short link plates.

Technical information (summary)
Sailing program: Cruising
Boat length (m): From 13 to 15 m
Sail type: Genoa (partial furling supported)
Max sail area (m²): 80
Structural system: No
Partial furling: Yes
Max forestay dia (mm): 10
Max rod dia: #22
Luff line dia (mm): 5
Double luff groove: Yes
Removable drum: No
Standard length (m): 16
Other lengths (m): 18 / 20
Available axes (mm): 10 / 12 / 14 / 16 / 19 / 22 / 25
Extrusion length (m): 2
Weight / meter (kg/m): 0.933
Locking devices type: Standard locking devices (stainless steel options available)
Warranty: 10 years
Options available: Reefing kit, long and medium link plates, stainless steel locking devices

Specifications

• Model: C420SP
• Brand: Profurl
• Application: Below-deck manual headsail furler for cruising
• Maximum forestay diameter: 10 mm (rod #22)
• Suitable boat length: 13–15 m
• Max sail area: 80 m²
• Sail type: Genoa (partial furling supported)
• Double luff groove: Yes
• Luff line diameter: 5 mm
• Standard extrusion finish: Colourless anodized round extrusions
• Extrusion alloy: 6106
• Bearings: sealed, high-strength 100 C6 carbon steel in grease bath
• Drum: high-impact plastic (non-deformable, UV resistant)
• Feeder / pre-feeder material: Stainless steel 316L (opening pre-feeder by Wichard optional/standard on racing)
• Tack point: height adjustable
• Removable drum: No
• Standard length: 16 m (other lengths: 18 / 20 m)
• Available axes (mm): 10 / 12 / 14 / 16 / 19 / 22 / 25
• Extrusion length: 2 m
• Weight per meter: 0.933 kg/m
• Locking devices: Standard locking devices (stainless steel options available)
• Warranty: 10 years
• Options: Reefing kit, long and medium link plates, stainless steel locking devices
