power boat steering / mechanical
ZTS

{{requestButtons}}

Characteristics

  • Application domain:

    for power boats

  • Operation:

    mechanical

Description

Components_

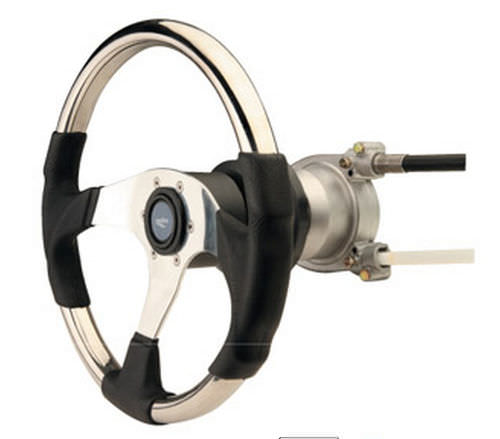

ZTS GEN II ROTARY
STEERING HELM
a. Single ZTS Rotary Helm
b. Dual ZTS Rotary Helm
Mounting Bezel
a. 90’ black bezel
b. 20’ Wack bezel
Steering Cable
a. Pinnacle Rotary Steering Cable (Stainless Steel)
b. Rotary Steering Cable (Galvanized)
Application guide_
Mechanical rotary steering non-power assisted outboard
engine up to V-4
- Standard 3/4* tapered shaft
Approximately 38 turning revolution from lock to lock
- Maximum wheel size: 16" (406.4 mm) diameter
Minimum steering cable bend radius 8’ (203.2 mm)
Should not be used on boats equipped with engines that
exceeds the maximum horse power rating ot the boat
Features & Specifications_
ZTS system substantially minimizes torque from engine
Fast and easy installation with *EZ Clip" feature
(not available with dual helm)
Optional stainless steei steering cable construction: output
ends and inner core
Snap-on bezel with minimum tools required
Compact size and easy installation
Bolt In replacement for standard 2900 Rotary Steering
System
Can generally be used on boats up to 25ft in length
- Replace/upgrade the following competitors’ helms:
Teleflex*: Safe-T OC, Safe-T, NFB 4.2, NFB Safe-T II
