power boat steering / mechanical / articulated

{{requestButtons}}

Characteristics

  • Application domain:

    for power boats

  • Operation:

    mechanical

  • Other characteristics:

    articulated

Description

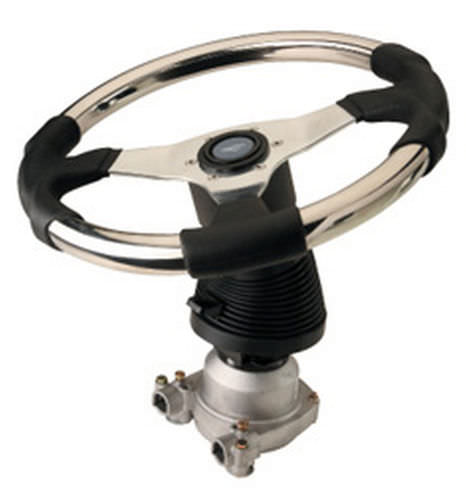

Pretech's tilt helm assembly is designed for boaters seeking what only a five way adjustable helm assembly can otter, freedom, flexibility,
and comfort. With its full 40 degree range of motion, the steering wheel can now be adjusted to you, not you to the steering wheel. Mod-
ern boat cockpit styling makes tilts a perfect blend.

Application guide
■ Working toad: 140KGF at all tiller end
■ Maximum wheel size: 16" diameter
Shaft size: 3/4" diameter, 1" per foot taper
Features_
Constant velocity universal joint design with rigid bear-
ings creates smooth steering at all angles
Standard black boot comes with tilt mechanism
90 degree mountings allow first wheel position to be
at vertical
5 tilt positions within 40 degree range
Specifications_
Working load: 140 KGF at all tiller end
■ Maximum wheel size: 16" diameter
Shaft size: %' diameter round tapered shaft
