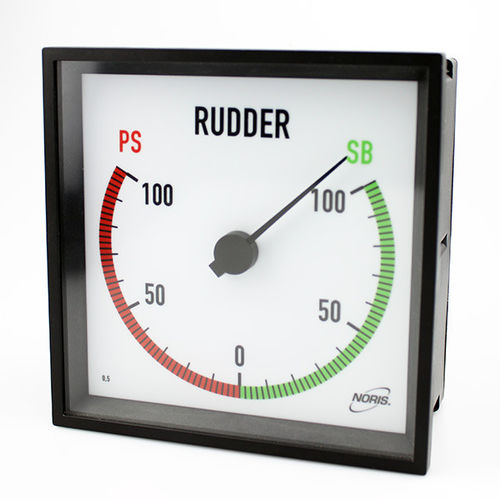

boat indicator / for ships / multi-function / rudder angle boat indicator / for ships / multi-function / rudder angle - NIQ3-144


  • Application domain:

    for boats, for ships

  • Type:

    multi-function, rudder angle

  • Display:


  • Applications:


  • Other characteristics:



Long lifetime due to compact and robust technology, a high protection class and a glass-fibre-reinforced, salt spray resistant plastic housing, suitable for outdoor areas
Indicator with non-linear scales (spreading scale) available
Individual scale design and corporate logos possible, even for small quantities
Option: Available as indicator with 360° rotary faceplate (see datasheet DB-NIQ31) or as indicator with frequency input with integrated direction-of-rotation monitoring
Option: Minimum-Maximum value indication for saving and indicating the highest and lowest measured value
Option: Control functionality for sensor failure and power supply failure (Live-Zero)
Connection for external illumination control as well as separate default brightness setting. On devices with an illuminated pointer it is also possible to set the pointer lighting separately.

NORIMETER indicators of type NIR3..., NIQ3... are analogue indicating instruments (gauges), high-resolution stepping motor indicators controlled by microprocesses. They serve to visualise velocity, speed, pressure, temperature, etc. Their compact and robust design makes them suitable for continuous use in harsh environments. They fulfil the requirements expressed in DIN EN 50155 for transportation technology and also the approvals of the societies for commercial shipbuilding.
