Geomagnetic field sensor 9X
for boatsmagnetic

geomagnetic field sensor
geomagnetic field sensor
Add to favorites
Compare this product


Measured value
geomagnetic field
Application domain
for boats
Other characteristics
Power supply

Max.: 30 V

Min.: 9 V

Overall height

68 mm
(3 in)

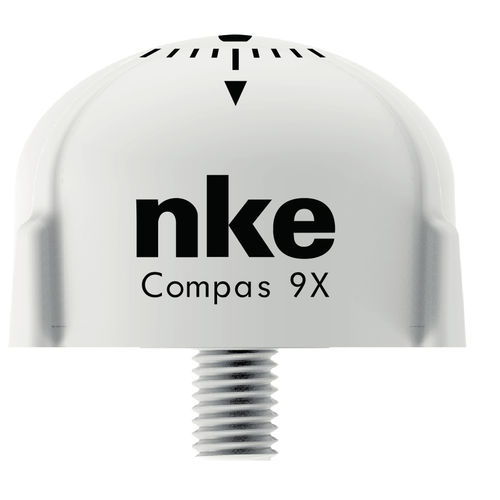

The “Compas 9X” nke is a precision sensor comparable to an inertial unit, realizing the fusion of accelerometers, gyrometers and magnetometers data in real time. It delivers a true orientation in the 3D space: heading, rolling and pitching. Movement and orientation are available at the frequency of 25 Hz (NMEA output). The miniaturization of the sensor (MEMS components) and its integration in a new generation waterproof housing facilitates its installation on board. CHARACTERISTICS Consumption : <500mW Angular resolution : 0,01° Magnetic heading precision : 2°(dynamic) Roll and Pitch precision : 1°(dynamic) Gyroscopes : ±2000°/s Accelerometers : ± 16G Magnetometer : ± 0,8Gauss Operating temp.: -10°C à +50°C Watertighness : IP67 Weigth : 200 g Dimensions : H68 x Ø78 Warranty: 2 years Includes : bracket, 6m cable Ref.: 90-60-534 FUNCTIONS Under pilot, the system uses the boat acceleration data to apply a correction on the compass heading The combination of the 9X Compass with a Gyropilot (gyrometer integrated) enhances the pilot performance. A standard fluxgate compass does not provide the boat’s acceleration data. Therefore, there is a damping for compass heading data in order to get a stable value; otherwise it would not be useable. The integrated gyrometer in the autopilot partly compensates for this but with clean data coming from the 9X Compass, the performance is even better.
