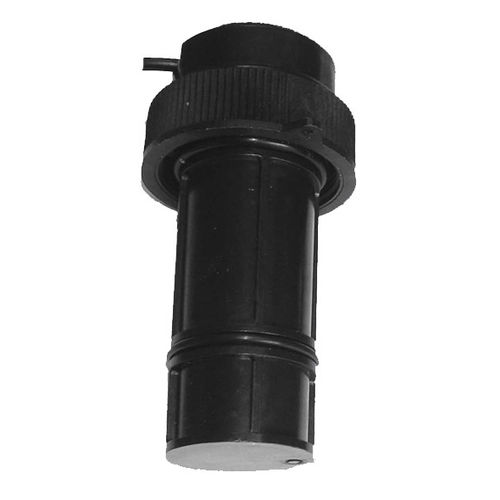

Depth transducer 90-60-222
for boatsthrough-hull

depth transducer
depth transducer
Add to favorites
Compare this product


Characteristics

Measured value
depth
Application domain
for boats
Other characteristics
through-hull

Description

This sensor provides depth values in meters or feet depending on the system settings. An offset can be made to give depth below waterline or below the keel whichever is preferred. It can be removed from the housing for maintenance or during the winter. It is connected to the system via a specific junction box linked to the TOPLINE bus. Waterproof protection IP67 Cable 6 m Weight 700g Operating temperature -10°C to +50°C Storage temperature -20°C to +60°C Range up to 50 meters (measured) Hull housing dimensions 41 mm internal diameter (with adapter) and 50 mm external diameter

Catalogs

No catalogs are available for this product.

See all of nke Marine Electronics‘s catalogs
