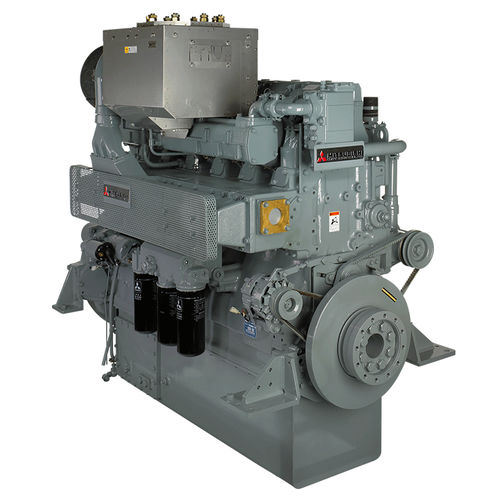

Inboard engine S6R2-T2MPTAW3

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


inboard, auxiliary
Power source
diesel, electric
for ships
turbocharged, direct fuel injection
Cooling system
Pollution control standard
Tier 2
Other characteristics
for generator sets, 4-stroke

610 kW (829.4 hp)


30 l (8 gal)

Number of cylinders

6 unit

Engine speed

1,200 rpm (7,540 rad.min-1)


170 mm (6.7 in)


220 mm (8.7 in)


1,811 mm (71 in)


1,108 mm (44 in)


1,694 mm (67 in)


2,960 kg (6,526 lb)


The S6R2-T2MPTAW3 engine is designed and built in Japan and finished to customer specifications in France in order to deliver performance and reliability. From the combustion chamber design to the fuel injection technology, to the turbocharger and the advanced cooling system. Everything has been perfectly balanced to provide highly reliable operation, optimum fuel consumption and minimized installation footprint. Utilizing a long-stroke block with in-house MHI turbocharger technology, we have managed to maintain the footprint of our lower output engines, while substantially increasing the power output. Its maintenance is easy as each cylinder has its own cylinder head, and the engine has large inspection covers on the crankcase. This strength and reliability are ideally suited for propulsion for various types of vessels. Benefits Reliable Compact in size Economical fuel consumption Commonality of parts across the MHIET engine models, simplifies spare part management Applications Ferries Offshore Tug Flywheel and housing - SAE 18 / SAE 00 Compression ratio - 14.0:1 Cooling method - separate high and low temperature cooling circuit; charge air cooler by closed freshwater system controlled by thermostat (intercooler)
