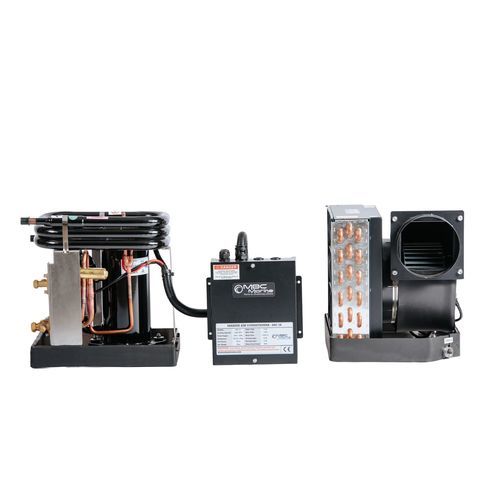

Boat air conditioner SCP24

split

SCP 24K – Powerful Split Marine A/C for Large Boats With 24,000 BTU/h capacity, the SCP 24K is ideal for large cabins or saloons. It delivers strong cooling and heating performance while keeping the compressor noise out of the living area—quiet, efficient, and built for marine use. Product Details - Capacity (BTU/h): 24,000 BTU/h - Voltage / Frequency: 230V / 50-60Hz - Operation Mode: Cooling / Heating - Warranty: 2-year - Evaporator Material: Blue-Fin Coating - Basic package includes: LED Display, 5m Network cable, Mounting brackets, Insulation tape - Possible optionals: SMART display + Soft Starter - Unit Dimensions (cm) H x W x D: Condenser: 408x250x330, Evaporator: 430x560x370 - UNIT Weight (kg): Condenser: 52 kg, Evaporator: 18 kg Specifications of The A/C Unit Unit Parameters Parameter list of Condensing unit - Cooling capacity: 24000 Btu/h - Heating capacity: 26400 Btu/h - Power Source: 230 V / 50Hz - Input power (kW): 1.36 - Refrigerant: R410A - Dimension of Condensing unit: Height: 408, Weight: 250, Depth: 330 - Connection Pipe: Gas: 12.7, Liquid: 9.52 - Sea Water Connection Size: 1″ - Drain Connection Size: DN20 - Net Weight (kg): 58 Parameter list of Evaporator unit - Dimension of Evaporator unit: Height: 430, Width: 560, Depth: 370 - Minimum Air Duct Size (mm): 200 - Input power (W): 300 - Connection Pipe: Gas: 12.7, Liquid: 9.52 - Drain Connection Size: DN20 - Net Weight (kg): 18 Features - 3 operation modes: Cool - Heat - Fan - 5-speed fan speed selection - High & low pressure protection - Overload protection - Compressor 3-minutes delayed start function - Condenser coil with high-efficiency double spiral tube - Freely adjustable air outlet - Rust resistant components by using stainless steel - Nikkel Antimicrobial Evaporators - High static pressure ball bearings blowers with auto mode Technical Characteristics / Specifications - Cooling capacity: 24,000 BTU/h - Heating capacity: 26,400 BTU/h - Power Source: 230 V / 50Hz - Input power (kW): 1.36 - Refrigerant: R410A - Condenser dimensions (HxWxD): 408x250x330 mm - Evaporator dimensions (HxWxD): 430x560x370 mm - Condenser weight: 52 kg - Evaporator weight: 18 kg - Sea Water Connection Size: 1″ - Drain Connection Size: DN20 - Minimum Air Duct Size: 200 mm
