Sailboat air conditioner SCP10

for motor boatsfor boatsplit

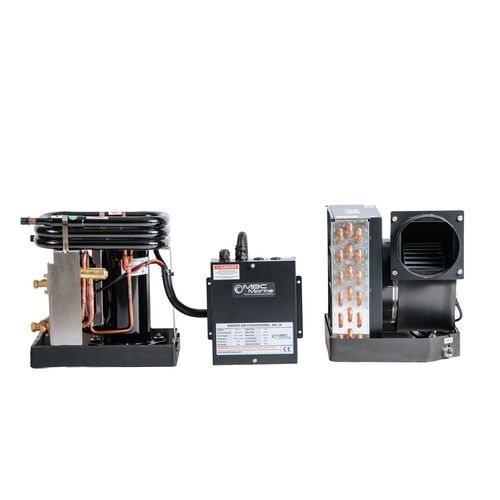

SCP 10K Split Marine Air Conditioner – Compact & Ultra-Quiet Cooling The SCP 10K is a compact split marine air conditioner delivering 10,000 BTU/h of efficient cooling and heating—ideal for sailboats and small motorboats. With the compressor unit placed outside the cabin, noise is reduced to a minimum. The slim fan coil fits easily under a seat or bunk, saving valuable interior space. Perfect for year-round comfort in tight onboard spaces. Quiet, reliable, and built for marine conditions. Product Details - Capacity (BTU/h): 10,000 BTU/h - Voltage / Frequency 230V / 50-60Hz - Operation Mode Cooling / Heating - Warranty 2-year - Evaporator Material Blue-Fin Coating Basic package includes: - LED Display, 5m Network cable, Mounting brackets, Insulation tape Possible optionals: - SMART display + Soft Starter Unit Dimensions (cm) - Condenser: 315x280x220 - Evaporator: 300x355x245 UNIT Weight (kg) - Condenser: 29kg - Evaporator: 10kg Specifications of The A/C Unit Unit Parameters Parameter list of Condensing unit - Cooling capacity: 10000 Btu/h - Heating capacity: 8700 Btu/h - Power Source: 230 V / 50Hz - Input power (kW): 0.94 - Refrigerant: R410A - Dimension of Condensing unit: Height 315, Weight 280, Depth 220 - Connection Pipe: Gas 9.52, Liquid 6.35 - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Net Weight (kg): 29 Parameter list of Evaporator unit - Dimension of Evaporator unit: Height 300, Width 355, Depth 245 - Minimum Air Duct Size (mm): 125 - Input power (W): 100 - Connection Pipe: Gas 9.52, Liquid 6.35 - Drain Connection Size: DN20 - Net Weight (kg): 10 - 3 operation modes: Cool - Heat - Fan - 5-speed fan speed selection - High & low pressure protection - Overload protection - Compressor 3-minutes delayed start function - Condenser coil with high-efficiency spiral double tube - Freely adjustable air outlet - Rust resistant components by using stainless steel - Nikkel Antimicrobial Evaporators - High static pressure ball bearings blowers with auto mode Technical Specifications / Features - Model: SCP10 - Capacity: 10,000 BTU/h (cooling), 8,700 BTU/h (heating) - Voltage/Frequency: 230V / 50-60Hz - Operation Mode: Cooling / Heating - Warranty: 2-year - Evaporator Material: Blue-Fin Coating - Refrigerant: R410A - Condenser Dimensions (cm): 315 x 280 x 220 - Evaporator Dimensions (cm): 300 x 355 x 245 - Condenser Weight: 29kg - Evaporator Weight: 10kg - Input Power: 0.94 kW (condenser), 100 W (evaporator) - Connection Pipe (Gas/Liquid): 9.52mm / 6.35mm - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Minimum Air Duct Size: 125mm - Basic package: LED Display, 5m Network cable, Mounting brackets, Insulation tape - Optional: SMART display + Soft Starter
