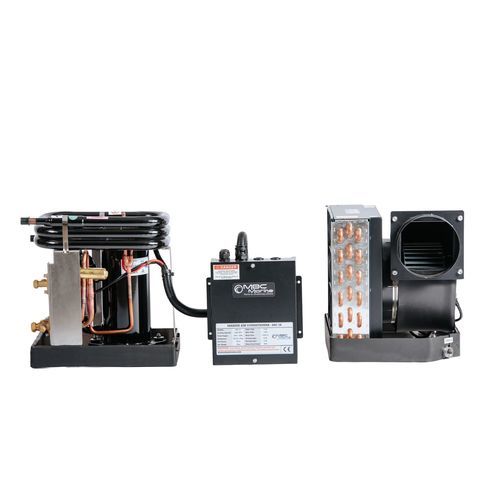

Split air conditioner SCP16

SCP 16K Split Marine Air Conditioner – Efficient Comfort for Larger Cabins The SCP 16K provides 16,000 BTU/h of cooling and heating—perfect for larger cabins or multi-zone layouts. Its split design keeps the noise outside, ensuring silent comfort and space-saving installation in marine environments. Specifications of The A/C Unit - Capacity (BTU/h): 16,000 BTU/h - Voltage / Frequency: 230V / 50-60Hz - Operation Mode: Cooling / Heating - Warranty: 2-year - Evaporator Material: Blue-Fin Coating - Basic package includes: LED Display, 5m Network cable, Mounting brackets, Insulation tape - Possible optionals: SMART display + Soft Starter - Unit Dimensions (cm) H x W x D: Condenser: 365x250x330, Evaporator: 355x400x320 - UNIT Weight (kg): Condenser: 32 kg, Evaporator: 14 kg Parameter list of Condensing unit - Cooling capacity: Btu/h 16000 - Heating capacity: Btu/h 17600 - Power Source: 230 V / 50Hz - Input power (kW): 1.15 - Refrigerant: R410A - Dimension of Condensing unit: Height 365, Width 330, Depth 250 - Connection Pipe: Gas 12.7, Liquid 9.52 - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Net Weight (kg): 32 Parameter list of Evaporator unit - Dimension of Evaporator unit: Height 355, Width 400, Depth 320 - Minimum Air Duct Size (mm): 150 - Input power (W): 200 - Connection Pipe: Gas 12.7, Liquid 9.52 - Drain Connection Size: DN20 - Net Weight (kg): 14 - 3 operation modes: Cool - Heat - Fan - 5-speed fan speed selection - High & low pressure protection - Overload protection - Compressor 3-minutes delayed start function - Humidity control - Memory functions: Timer ON or OFF - Sleep & alarm function - Condenser coil with high-efficiency spiral double tube allows high-heat exchange rate. - Freely adjustable air outlet. - Rust resistant components by using stainless steel - Nikkel Antimicrobial Evaporators - High static pressure ball bearings blowers with auto mode Technical characteristics / specifications: - Cooling capacity: 16,000 BTU/h - Heating capacity: 17,600 BTU/h - Voltage/Frequency: 230V / 50-60Hz - Operation Mode: Cooling / Heating - Evaporator Material: Blue-Fin Coating - Refrigerant: R410A - Condenser Dimensions (cm): 365 x 250 x 330 - Evaporator Dimensions (cm): 355 x 400 x 320 - Condenser Weight: 32 kg - Evaporator Weight: 14 kg - Connection Pipe (Gas/Liquid): 12.7 / 9.52 - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Minimum Air Duct Size: 150 mm - Input Power (Condensing unit): 1.15 kW - Input Power (Evaporator unit): 200 W - Warranty: 2 years
