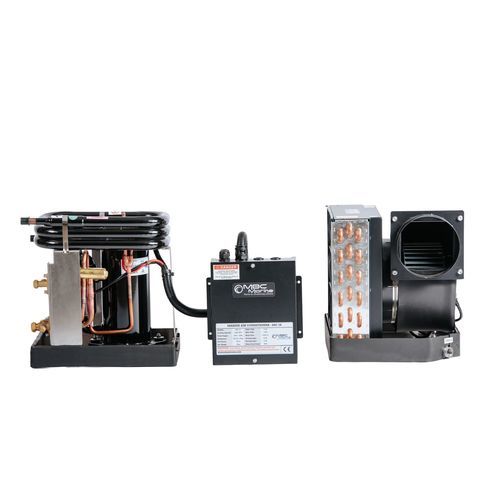

Boat air conditioner SCP13

split

SCP 13K Split Marine Air Conditioner – Balanced Power, Minimal Noise The SCP 13K delivers 13,000 BTU/h of reliable cooling and heating with whisper-quiet performance. Ideal for mid-sized cabins, it offers efficient climate control while keeping the compressor outside the living space for reduced noise and more comfort on board. Product Details - Capacity (BTU/h): 13,000 BTU/h - Voltage / Frequency: 230V / 50-60Hz - Operation Mode: Cooling / Heating - Warranty: 2-year - Evaporator Material: Blue-Fin Coating Basic package includes: - LED Display, 5m Network cable, Mounting brackets, Insulation tape Possible optionals: - SMART display + Soft Starter Unit Dimensions (cm) H x W x D - Condenser: 315x280x220 - Evaporator: 300x355x245 UNIT Weight (kg) - Condenser: 30kg - Evaporator: 12kg Specifications of The A/C Unit - Cooling capacity: 13,000 Btu/h - Heating capacity: 13,800 Btu/h - Power Source: 230 V / 50Hz - Input power (kW): 1.05 - Refrigerant: R410A - Dimension of Condensing unit: Height 315, Weight 280, Depth 220 - Connection Pipe: Gas 9.52, Liquid 6.35 - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Net Weight (kg): 30 Parameter list of Evaporator unit - Dimension of Evaporator unit: Height 300, Width 355, Depth 245 - Minimum Air Duct Size (mm): 125 - Input power (W): 150 - Connection Pipe: Gas 9.52, Liquid 6.35 - Drain Connection Size: DN20 - Net Weight (kg): 12 - 3 operation mode: Cool - Heat - Fan - 5-speed fan speed selection - High & low pressure protection - Overload protection - Compressor 3-minutes delayed start function - Condenser coil with high-efficiency spiral double tube - Freely adjustable air outlet - Rust resistant components by using stainless steel - Nikkel Antimicrobial Evaporators - High static pressure ball bearings blowers with auto mode Technical Specifications / Features - Capacity: 13,000 BTU/h cooling, 13,800 BTU/h heating - Voltage/Frequency: 230V / 50-60Hz - Operation Modes: Cooling / Heating / Fan - Warranty: 2 years - Evaporator Material: Blue-Fin Coating - Refrigerant: R410A - Condenser Dimensions (cm): 315 x 280 x 220 - Evaporator Dimensions (cm): 300 x 355 x 245 - Condenser Weight: 30kg - Evaporator Weight: 12kg - Input Power: 1.05 kW (condenser), 150 W (evaporator) - Sea Water Connection Size: 1/2″ - Drain Connection Size: DN20 - Minimum Air Duct Size: 125 mm - Basic package: LED Display, 5m Network cable, Mounting brackets, Insulation tape - Optional: SMART display + Soft Starter
