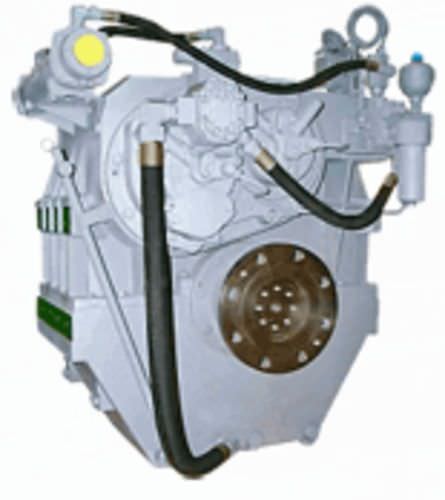

Motor reduction gearbox MM W5200NRfor ships
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for ships
- Applications
- motor
- Power
733 kW, 1,100 kW, 1,311 kW
(996.6 hp, 1,495.6 hp, 1,782.5 hp)- Rotational speed
1,100 rpm, 1,200 rpm, 1,800 rpm
(6,912 rad.min-1, 7,540 rad.min-1, 11,310 rad.min-1)
Description
O - Robust design and easy onboard maintenance.
O - Robust design also withstands continuous duty in workboat, dredger applications.
O - Fullyworkstested, reliableand simple to install.
O - Reverse réduction marine transmission with hydraulically actuated multi-disc
clutches.
O - Case hardened and precisely ground gear teeth for long life and smooth running.
O - Robust cast iron casing for direct or remote mounting.
O - Emergency “get home” capability.
O - Design, manufacture and quality control standards comply with ISO.
O - Suitable for twin installation with 100% rated power in ahead and astern condition.
O - Oil cooler complété with fittings and flexible hoses.
O - Integrated Brackets.
O - Free Standing.
O - LubeOilPump.
Options
O - Engine-matched torsional coupling.
O - Propeller shaft flange and coupling boit set.
O - Classification by ail major Classification Societies on request.
O - PTO (liveor clutchable).
O - Electric trolling valve for slow-speed drive.
O - Shaft brake.
O - Electric clutch control.
