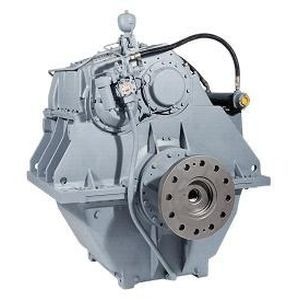

Engine reduction gearbox MM W20200 NR
for shipsmarinetransmission

engine reduction gearbox
engine reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships, marine
Applications
engine, transmission, propulsion
Power

Min.: 976 kW
(1,327 hp)

Max.: 1,997 kW
(2,715.2 hp)

Rotational speed

1,200 rpm, 1,800 rpm, 2,100 rpm
(7,540 rad.min-1, 11,310 rad.min-1, 13,195 rad.min-1)

Description

 Robust design also withstands continuous duty in workboat applications.  Fully works tested, reliable and simple to install.  Design, manufacture and quality control standards comply with ISO 9001.  Reverse reduction marine transmission with hydraulically actuated multi-disc clutches.  Easy onboard maintenance.  Compatible with all types of engines and propulsion systems. (Compatible for FPP) Features  Case hardened and precisely ground gear teeth for long life and smooth running.  Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.  Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable or other operating system.  Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode)  Emergency “get home” capability.  Robust cast iron casing.  Free standing.  Oil cooler complete with fittings and flexible hoses.  Integrated brackets. Options  Engine-matched torsional coupling.  Propeller shaft flange and coupling bolt sets.  Classification by all major Classification Societies on request.  PTO (live or clutchable).  Trolling valve for slow-speed drive.  Shaft brake.  Electric clutch control (24 VDC).
