GPS multi-purpose instrument E900

radiochart plottermarine

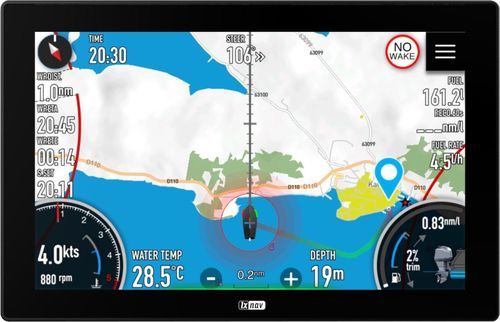

Product Overview The E900 is a multifunctional intelligent marine instrument designed for engine, navigation, and remote monitoring. It features a modern, waterproof, multi-touch display with an extremely bright 9-inch TFT LCD, making it sunlight readable and suitable for harsh marine environments. The E900 is the successor to the E700 and provides the right information at the right time, enhancing the boating experience with advanced monitoring and intuitive controls.

Key Features

• 9” very bright, sunlight-readable TFT LCD display (1024×600 pixels, 64k colours, auto adjustable brightness, 1000+ cd brightness)
• Waterproof and dustproof to IPX6 standard
• WiFi connectivity and NMEA2000 (CAN micro-C 5pin) compatibility
• Integrated 56-channel uBlox GPS receiver
• Modern, compact, and flush-mountable design with toughened glass and stainless steel frame
• Advanced multi-touch and gesture controls, plus optional jog wheel for intuitive operation
• Customisable screen layouts and multi-language support
• Visual and audible alarms for critical situations (e.g., shallow water, anchor drift, engine overheating)
• Automatic switching between screens/information based on priorities
• Integrated Open Sea Maps (free) and optional Navionics charts
• Media player and audio tuner compatible via N2K with Fusion and VDO audio systems

Monitoring & Data Display

• Engine monitoring: oil pressure, RPM, twin engine support, outboard/drive tilt, temperatures, pressures
• Fuel data: fuel consumption, range, fuel flow, tank level, trip, average economy
• Battery data: estimated battery time, state of charge, power consumption, charging current
• GPS data: speed, heading, anchor alarm, average speed
• Other: depth monitoring, shallow waters alarm, trim tabs, rudder angle

Special Modes & Alarms

• Anchor Mode: user-defined anchor radius, audio and visual alarms if boat moves outside set circle
• No Wake Zone: warns when too close to coast
• Shallow Waters Alarm: automatic display change and sound alarm when entering shallow waters
• Visual and audible alarms for various monitored parameters

Ease of Use

• Easy route planning with one click
• Customisable screen layouts
• Advanced gesture controls for quick mode changes and warning termination
• Jog wheel can be installed anywhere on the boat for convenient control

Connectivity & Compatibility

• WiFi and NMEA2000 network support
• Displays data from NMEA2000 compatible devices (engines, transducers, etc.)
• Compatible with a wide range of Fusion and VDO radios (see Supported Radios section)

Supported Radios
Manufacturer – VDO
ACQUALINK MEDIABOX – NMEA 2000 RADIO AM-FM-BT-USB
Manufacturer – FUSION
MS700, NRX-200, BB3300, MS-RA205, MS-AV650, MS-UD 650, MS-AV750, MS-RA70, MS-BB100, NRX-300, MS-UD-755, MS-AV755, MS-RA770

What's in the Box

• E900 instrument
• Quick start guide
• Installation instructions
• Mounting hardware
• Jog wheel (ordered separately)

Specifications
Voltage: 8-28V DC
Display: 9” TFT LCD, 1024×600 pixels, 64k colours, sunlight readable, 1000+ cd brightness, auto adjustable brightness
Operating Temperature: -25 to 60°C
Consumption: 800mA @ 12V
IP Rating: IPX6
Connection: 1 × NMEA2000 (CAN micro-C 5pin), WiFi
GPS: Integrated 56-channel uBlox GPS receiver
Multi-language: Yes
Alarms: Visual and Audible
Auto-On: Yes

Additional Features

• Flush design: front-mounted with thin bezel, water cannot accumulate on glass
• Custom solutions available for software and mechanical components (GUI redesign, bezel materials, etc.)

Technical Characteristics / Specifications

• Voltage: 8-28V DC
• Display: 9” TFT LCD, 1024×600 pixels, 64k colours, sunlight readable, 1000+ cd brightness, auto adjustable brightness
• Operating Temperature: -25 to 60°C
• Consumption: 800mA @ 12V
• IP Rating: IPX6
• Connection: 1 × NMEA2000 (CAN micro-C 5pin), WiFi
• GPS: Integrated 56-channel uBlox GPS receiver
• Multi-language: Yes
• Alarms: Visual and Audible
• Auto-On: Yes
