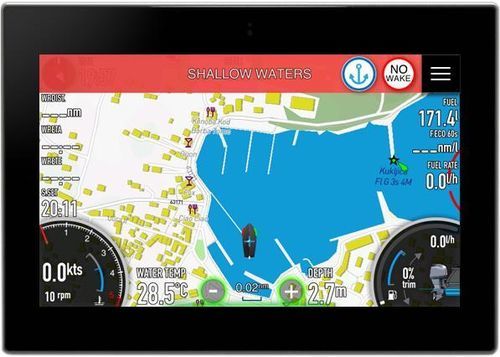

GPS multi-purpose instrument E700

radiochart plotterfor boat

Product Overview
E700 is a multifunctional intelligent marine instrument designed for engine, navigation, and remote monitoring. It features a modern waterproof multi-touch display with high brightness, providing the right information at the right time for boat operators.

Display & Interface
7” very bright TFT LCD display (1400+ nits), sunlight readable, 16-bit color, 800×480 pixels, 64k colors, auto adjustable brightness.
Advanced multi-touch interface, gesture controls, and optional jog wheel for intuitive operation.

• Modern waterproof multi-touch MfD
• Extremely bright display for sunlight readability
• WiFi connectivity
• Front-mounted flush design with stainless steel frame and glass
• IPX6 waterproof and dustproof standard

Key Features

• Automatic switching between screens/information based on priorities
• Intelligent warnings and notifications (visual and audible) before situations become critical
• Engine monitoring with self-learning software for abnormal conditions (e.g., overheating)
• Speedometer or RPM scale selectable
• Integrated Open Sea Maps (free) and optional Navionics charts
• Fuel data: fluid level, fuel rate, range, trip, average economy
• Battery data: estimated battery time, state of charge, power consumption, charging current
• Anchor mode: user-defined anchor radius, movement monitoring, audio/visual alarms
• No wake zone: warns when too close to coast
• Easy route planning with one click
• Customizable screen layout
• Multimedia: media player and audio tuner, compatible via N2K with Fusion and VDO audio systems
• Connectivity: WiFi, NMEA2000 (CAN micro-C 5pin)
• Integrated 56-channel uBlox GPS receiver, option to add SmartGPS antenna
• Multi-language support
• Visual and audible alarms
• Auto-on feature

Supported Radios

• VDO: ACQUALINK MEDIABOX – NMEA 2000 RADIO AM-FM-BT-USB
• FUSION: MS700, NRX-200, BB3300, MS-RA205, MS-AV650, MS-UD 650, MS-AV750, MS-RA70, MS-BB100, NRX-300, MS-UD-755, MS-AV755, MS-RA770

Engine & Navigation Data

• Oil pressure, RPM, twin engine support, outboard/drive tilt, temperatures, pressures
• Fuel consumption, range, fuel flow, tank level, trip
• GPS speed, heading, anchor alarm, average speed
• Depth monitoring, shallow waters alarm, trim tabs, rudder angle, battery

Specifications / Technical Data

• Voltage: 8-28V DC
• Display: 1400+ cd brightness, sunlight readable, 7″ TFT LCD, 800×480 pixels, 64k colors, auto adjustable brightness
• Operating temperature: -25° to 60°C
• Consumption: 650mA @ 12V
• IP rating: IPX6
• Connection: 1 × NMEA2000 (CAN micro-C 5pin), WiFi
• GPS: Integrated 56-channel uBlox GPS receiver
• Multi-language: Yes
• Alarms: Visual and audible
• Auto-on: Yes
• In the box: E700 instrument, quick start guide, installation instructions, mounting hardware (jog wheel ordered separately)
