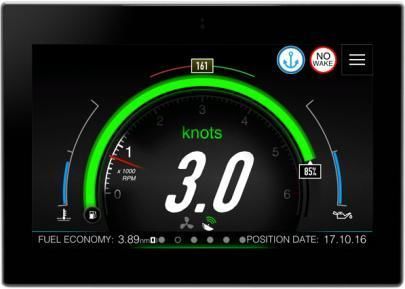

GPS multi-purpose instrument E500

radiochart plotterspeed log

Product Overview
E500 is a multifunctional intelligent marine instrument designed for engine, navigation, and remote monitoring. It features a modern waterproof multi-touch display with high brightness, ensuring visibility even in direct sunlight. The E500 is capable of monitoring various boat parameters over the NMEA2000 network and provides timely warnings and notifications to enhance safety and user experience.

• 5” very bright, sunlight-readable TFT LCD display (1200+ cd brightness, 800×480 pixels, 64k colours, auto adjustable brightness)
• Waterproof and dustproof (IPX6 standard)
• WiFi and NMEA2000 connectivity
• Integrated 56-channel uBlox GPS receiver
• Advanced multi-touch and gesture controls
• Customisable screen layouts
• Media player and audio tuner compatible with Fusion and VDO audio systems via N2K
• Visual and audible alarms
• Front-mounted flush design with stainless steel frame and glass

Key Features

• Automatic switching between screens/information based on priorities
• Intelligent warnings and notifications before situations become critical
• Engine monitoring with self-learning software for abnormal conditions (e.g., overheating)
• Speedometer and RPM scale options
• Integrated Open Sea Maps (free) and optional Navionics charts
• Fuel data: fluid level, fuel rate, range, trip, average economy
• Battery data: estimated battery time, state of charge, power consumption, charging current
• Anchor mode: user-defined anchor radius, audio and visual alarms if boat moves outside set circle
• No wake zone warning when too close to coast
• Easy route planning with one click

Supported Radios

• VDO: ACQUALINK MEDIABOX – NMEA 2000 RADIO AM-FM-BT-USB
• FUSION: MS700, NRX-200, BB3300, MS-RA205, MS-AV650, MS-UD 650, MS-AV750, MS-RA70, MS-BB100, NRX-300, MS-UD-755, MS-AV755, MS-RA770

Alarms

• Visual and audible alarms

In the Box

• E500 instrument
• Quick start guide
• Installation instructions
• Mounting hardware
• JOG wheel (ordered separately)

Features by Category

• Engine: Oil pressure, RPM, twin engine support, outboard/drive tilt, temperatures, pressures
• Fuel: Fuel consumption, range, fuel flow, tank level (fuel remaining), trip
• GPS: Speed (GPS), heading, anchor alarm, average speed
• Other: Depth monitoring, shallow waters alarm, trim tabs, rudder angle, battery

Specifications
Voltage: 8-28V DC
Display: 1200+ cd brightness, sunlight readable, 5″ TFT LCD 16 bit colour, 800×480 pixels, 64k colours, auto adjustable brightness
Operating temperature: -25° to 60°C
Consumption: 440mA @ 12V
IP rating: IPX6
Connection: 1 × NMEA2000 (CAN micro-C 5pin), WiFi
GPS: Integrated 56-channel uBlox GPS receiver
Multi-language support: Yes
Auto-on: Yes
