Technical details about 300-038-PRO-I

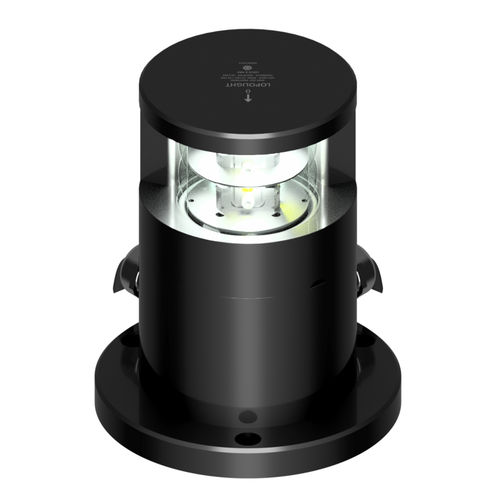

Masthead light 5 nm double for vessels 20-50 meter. Horizontal mounting. Black anodized. Professional series. ICE Class
LED (Light Emitting Diode) navigation light.
Rugged and unbreakable: Precision machined anodized aluminium housing protects the LED’s and electronics.
Completely waterproof and vibration proof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Ice-class version, automatic defroster function will ensure operation below minus 60 deg C.
Full brightness with input voltages ranging from 19 to 32 Volts.
Easy to install, light is delivered with IP68 aluminium base for easy termination of ships cable.
This light is part of the Lopolight Professional Series designed for work boats and commercial shipping.
Approvals - Lloyds Register MED 1350099
Included in - 1 Navigation Iight2 cable glands2 blinding caps2
package - connector plugslnstallation instruction & drawing
Measurements - 092,5x121 mm
Materials - Black hard coat anodized aluminum 50p, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage - 22-32 VDC
Power consumption - 7,0 Watt; Current @ 24 VDC: 0,3 A
Light colors - White-225°
Intensity - >52 cd
Visibility (@K=0.8) - 5 nm
Number of LED's - 6
Suggested feed - 12 VDC: 2 x 0,50 mm2 (outer diameter 5-9
cables Expected life - mm)24 VDC: 2 x 0,50 mm2 (outer diameter 5-9 mm)The light is delivered assembled with 1,5 meter neoprene cable
Vessel size - 20 - 50 meters (65,6 -164 feet)
Mounting - Vertical
