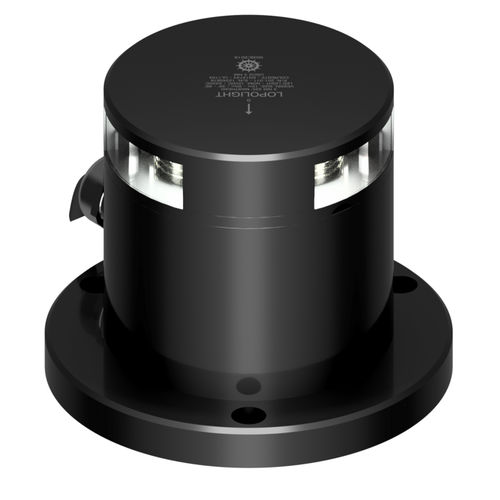

Technical details about 201-011KL-PRO
225° masthead light, single, horizontally mounted
LED (Light Emitting Diode) navigation light.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
Easy to install, light is delivered with IP68 aluminium base for easy termination of ships cable.
This light is part of the Lopolight Professional Series designed for work boats and commercial shipping.
Ice-class version available(PRO-I), automatic defroster function will ensure operation below minus 60 deg C.
Approvals - Worldwide typeapproval (please refer to certificates on Lopolight.com)
Included in - 1 Navigation light, Installation instructions and
package - with cable glands and blinding caps as appropriate.
Measurements - See drawing
Materials - Anodised aluminum 25p, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage - 10,0-32,0 VDC
Power - 2,9 Watt; Current: 0,23A @12 VDC - 0,13A @24
consumption - VDC
Light colors - White
Intensity - >15cd
Visibility (@K=0.8) - >3 nautical miles
Number of LED's - 2
Suggested feed cables Expected life - 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2
Vessel size - 12-20 meter (39,4 - 65,6 feet)
Mounting - Horizontal
