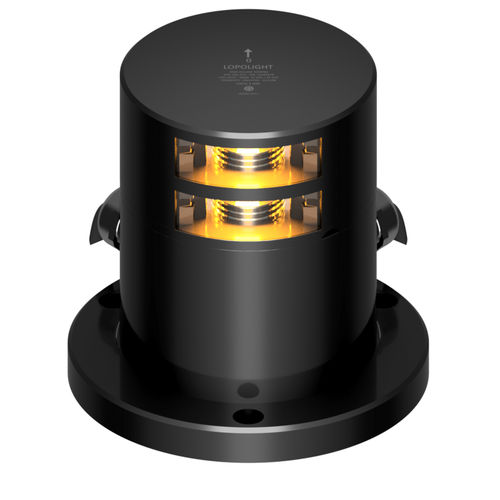

Ship navigation light 201-013ST-PRO

ship navigation light
ship navigation light
Add to favorites
Compare this product


Application domain
for ships
Light source
horizontal, double
Boat length (in meters)
<50 m
anodized aluminum


Technical details about 201-013ST-PRO 2 nautical miles 135° towing light, double, horizontally mounted No image New generation. LED (Light Emitting Diode) navigation light. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. Easy to install, light is delivered with IP68 aluminium base for easy termination of ships cable. This light is part of the Lopolight Professional Series designed for work boats and commercial shipping. Ice-class version available(PRO-I), automatic defroster function will ensure operation below minus 60 deg C. Approvals - Worldwide typeapproval (please refer to certificates on Included in - 1 Navigation light, Installation instructions and package - with cable glands and blinding caps as appropriate. Measurements - See drawing Materials - Anodised aluminum 25p, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. Supply voltage - 10,0-32,0 VDC Power - 1,6 Watt; Current: 0,12A @12 VDC - 0.07A @24 consumption - VDC Light colors - Yellow Intensity - >5,4cd Visibility (@K=0.8) - 2 nautical miles Number of LED's - 1/1 Suggested feed cables Expected life - 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2 Vessel size - 50 meter (164 feet) Mounting - Horizontal
