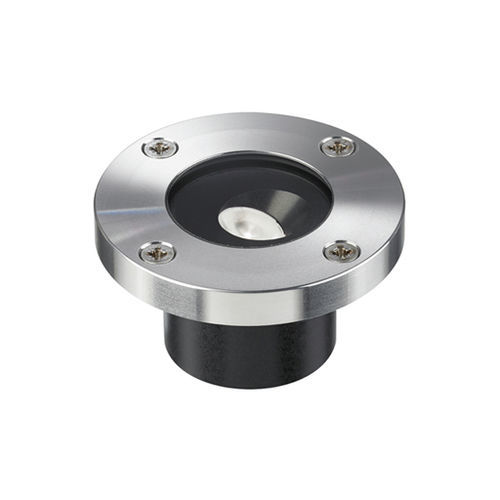

Exterior lighting spotlight LD18

for yachtfor interior lightinglighting

The updated LD18 utilizes the latest LED technology with a typical CRI of 93 in warm white and has been fitted with our new optics. The lens assembly is now tilted by 17° for floor or wall washing applications. It can be used as an uplight or wall light, with 5mm thick toughened glass, polished & passivated 316 stainless steel bezel and anodised aluminium body. When used on yacht exteriors the body can be made from 316 stainless steel. - Applications: External, Floor Wash, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, CB Certified - Fixing: 4x countersunk screws, /474 concrete housing - LED Information: NICHIA C1 LED Engine: 1.2W @ 350mA (LD18-C1-350), 1.7W @ 500mA (LD18-C1-500) and 2.4W @ 700mA (LD18-C1-700) - Materials: 316 Stainless Steel bezel, anodised aluminium or stainless steel body - IP Rating: IP68 - Not for permanent submersion (for permanent submersion applications use LD242A) - Accessories: /474 Concrete housing Technical Specifications: - Product: LD18 - Brand: Lightgraphix - Typical CRI: 93 (warm white) - Lens tilt: 17° - Glass: 5mm thick toughened - Bezel: Polished & passivated 316 stainless steel - Body: Anodised aluminium or 316 stainless steel (for yacht exteriors) - LED Engine: NICHIA C1 - Power: 1.2W @ 350mA, 1.7W @ 500mA, 2.4W @ 700mA - IP Rating: IP68 (not for permanent submersion) - Fixing: 4x countersunk screws, /474 concrete housing - Accessories: /474 Concrete housing
