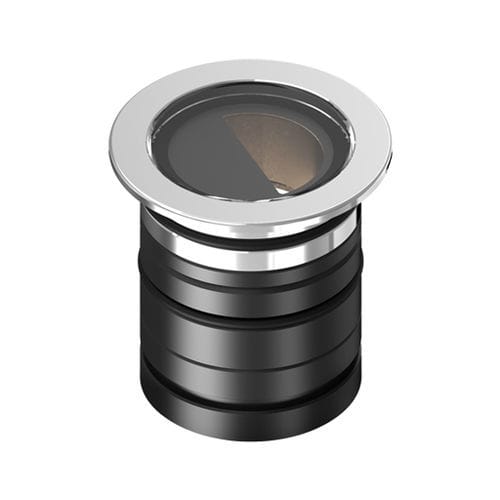

Exterior spotlight LD141X

for boatcabinLED

The LD141 has been designed for exterior applications and can be specified as an uplight (LD141X) or wall light (LD141Y). Compact in size, the fittings offer a powerful output with a large range of features. There are 2 LED engine options available. The E3 engine delivers a high output of 462lm and beam angles ranging from a 12° narrow to a 15° x 49° extra oval beam, whilst the F1 engine offers a super warm colour temperature of 2200K. Both configurations offer the ability to specify a 20° tilt film to angle the light down onto the lit surface for a more concentrated effect. Designed with a repairable light engine, glare and fixing accessories, the LD141 offers a circular, low glare, solution for a range of exterior rated applications. - Applications: Cove Lighting, External, Recessed Uplighting, Wall Wash, Yacht Lighting, (400lm-600lm) Compact range, Fifty Degree Ambient (50°C), CB Certified - Fixing: /SC - spring clips, /441S - first fix sleeve, /441N or /441N-2 (2-gland) concrete housing, /441GT - ground tube - LED Information: E3 NICHIA LED engine - up to 7W @ 500mA F1 CREE LED engine - up to 5W @ 500mA - Materials: 316 Stainless Steel bezel, hard anodised aluminium body, 6mm black ceramic screen print toughened glass - IP Rating: IP67 - Accessories: Glare control: /NGS - no glare shield, /GSHM - half moon glare shield, /HL - honeycomb louvre Technical Specifications: - Product: LD141X - Manufacturer: Lightgraphix Ltd - LED Engines: E3 (NICHIA, up to 7W @ 500mA, 462lm, 12° to 15°x49° beam), F1 (CREE, up to 5W @ 500mA, 2200K) - Materials: 316 Stainless Steel bezel, hard anodised aluminium body, 6mm toughened glass - IP Rating: IP67 - Applications: Exterior, uplight, wall light, yacht lighting, cove lighting - Accessories: Glare shields, honeycomb louvre, fixing sleeves, ground tube
