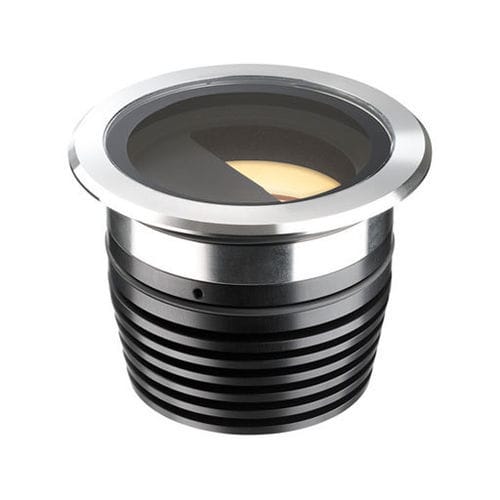

Outdoor spotlight LD154

cockpitLEDwall

The LD154 is our most powerful fitting to date, delivering up to 1443lm from a minimal body depth of 71mm. It forms a new ULtra range of high-power uplight solutions for drive over, low glare (LD154DR) and asymmetric installations (LD154T). There are 3 LED engine options available. Our new P1 engine delivers the highest output, whilst the E3 offers an exceptional extra narrow beam of 9° and the N1, a 13° beam. The lens assembly features large 50mm optics which offer ultra-high efficiency, superior beam quality and low glare. Reaching heights of up to 14 metres, the LD154 demonstrates excellent size to output ratio and has been designed with a repairable engine, providing a robust circular solution for high-power uplight applications. - Applications: Recessed Uplighting, Wall Wash, Yacht Lighting, (900+ lm) Ultra range, CB Certified - Fixing: Spring clips, Fixing sleeve and o-rings, Concrete housing, Ground tube - LED Information: E3 LED engine - up to 10W @ 700mA N1 LED Engine - up to 14W @ 700mA P1 LED Engine up to 20W @ 500mA - Materials: Black hard anodised aluminium body, 316 Stainless Steel bezel - IP Rating: IP67 - Accessories: Honeycomb louvre, Half-moon glare shield, Oval beam glare shield Technical Specifications: - Maximum output: 1443lm - Body depth: 71mm - LED engine options: P1 (highest output), E3 (9° beam), N1 (13° beam) - Optics: 50mm, ultra-high efficiency - Maximum beam height: up to 14 metres - Repairable engine - IP67 rated - Material: Black hard anodised aluminium, 316 Stainless Steel bezel
