rectangular portlight / for boats / opening
3930 series

Add to MyNauticExpo favorites
Compare this product Don’t compare this product

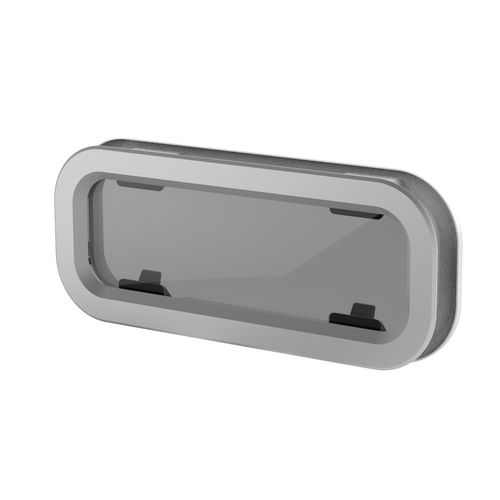

rectangular portlight rectangular portlight - 3930 series
{{requestButtons}}

Characteristics

  • Configuration:

    rectangular

  • Application domain:

    for boats

  • Type:

    opening

Description

Product Description

A perfect match for any hatch in the Lewmar range, the Standard Portlight is stylish, competitively priced and easy to both use and install.

Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
Can be installed with sealant or closed cell PVC tape
White ABS Plastic Trim
Supplied complete with flyscreen (except sizes 4L and 4R)
Full range of spare parts available

Lewmar Portlight and Fixedlights should be fitted to a fiat surface with a maximum tolérance of +/-1mm extending 12mm beyond the planned cutout and a deck / hull thickness if 6-34mm. Hold the inner frame on the inside of the intended position, ensure that a fiat bearing area exists over the surface of the inner frame, leaving sufficient clearance for the trim to be fitted, (see sketch of typical cross section).
With a pencil mark out the cutout to the recommended dimension shown.
The lower edge of product fitted in the hull AREA i should be a minimum of 600mm above the floatation plane in the crafts fully loaded ready-for-use condition, the boat being at rest in the upright condition.
Where craft are intended to be operated on 'OCEAN' or 'OFFSHORE' voyages (as defined by ISO/DIS 12216.2(E)), no part of the plate or its framing is to extend beyond the outer surface of the hull or of a built-in-fairing being an intégral part of the hull.
