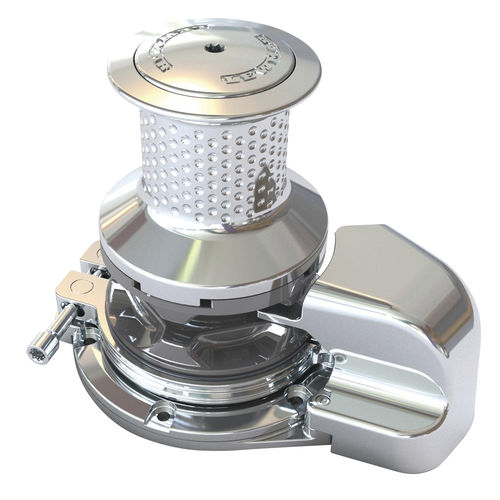

Hydraulic windlass V9/V10/V12 serieselectricfor boatsfor yachts
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Application domain
- for boats, for yachts
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Function
- stainless steel, stainless steel base, single gypsy
- Working load
Max.: 2,500 kg
(5,512 lb)Min.: 1,125 kg
(2,480 lb)- Maximum pull
2,250 kg, 5,000 kg
(4,960 lb, 11,023 lb)- Engine power
Max.: 7,500 W
(10 hp)Min.: 4,000 W
(5 hp)- Power supply
Max.: 400 V
Min.: 208 V
- Amperage
Max.: 24 A
Min.: 11 A
- Chain diameter
Max.: 22 mm
(1 in)Min.: 13 mm
(1 in)- Boat length
Max.: 160'00"
(49 m)Min.: 95'00"
(29 m)164'00"
(164 m)- Weight
183 kg, 357 kg
(403 lb, 787 lb)- Anchoring speed
20 m/min
Description
Offering a full suite of super yacht winches, the V9 - V12 range caters for vessels from 95ft to 160ft. Lewmar's cutting edge design includes large precision cast component assemblies. The casting allows optimised strength through FEA design, whilst offering significant weight saving over solid components.
Features:
-All stainless deck unit
- All sizes are available as gypsy only and gypsy drum in left hand, right hand and remote chain pipe configurations had configurations
- full range of power options including AC, DC and hydraulic
- independent capstan operation
- powered or manual chain release
- W.A.R.P drum
- A wide range of metric and imperial chain gypsies are available, including 22mm stud link
