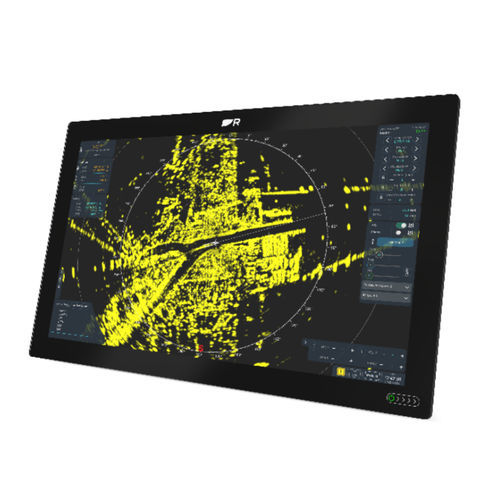

Ships radar KRS-series

marineARPAwith AIS

The KRS-series is a solid-state marine radar designed for IMO-compliant offshore situational awareness. Available display sizes: 16, 19, 22 and 24 inch. Basic ranges: 0.125–96 NM. Peak output power: 110W. Antenna: 6 ft.

Key features

• IMO-compliant radar for offshore situational awareness and collision avoidance
• Display lineup (16/19/22/24 inch) to suit bridge layout and viewing distance
• Common-platform architecture for simplified maintenance: shared scanner (RSB-111P 110W), 6 ft antenna (RSA-1SP) and power converter (VCM100)
• Supports ship power plans: 12/24 VDC support; standard kit includes 25 m power cable, 25 m radar data cable and 1 m RJ45 cable to reduce installation effort
• Built-in AIS interface for target display (body text references display of up to 900 targets; specifications list AIS capacity as 4000)
• Interfaces with external navigation devices: gyro, GNSS, speed, depth and wind sensors; supports external alarm buzzer, external card reader and USB trackball
• Installation accessories and expandability: size-specific sun covers, mounting hardware, gasket tape, documentation; networked DCU enables future expansion (keyboard option planned)

Documentation
PDF brochure and manuals are provided for the KRS-series, including operation manual, installation manual and product brochure.

Main Specifications
Display size: 16/19/22/24 inch
Output power (Peak): 110W
TT (ARPA): 100 targets
AIS: 4000 (note: body text also references built-in AIS interface for displaying up to 900 targets)
C-MAP Chart: –
Resolution: 1920×1080 (WUXGA)
USB Trackball connection: Yes

Technical specifications

• Product name / series: KRS-series
• Type: Solid State Marine Radar (IMO product / Marine Radar)
• Display sizes available: 16, 19, 22, 24 inch
• Basic ranges: 0.125 – 96 NM
• Peak output power: 110W
• Scanner: RSB-111P (110W)
• Antenna: RSA-1SP (6 ft)
• Power converter: VCM100 (shared platform component)
• DCU: networked DCU for system integration and expansion
• Power supply support: 12/24 VDC
• Standard cabling included: 25 m power cable, 25 m radar data cable, 1 m RJ45 cable
• ARPA (TT) targets: 100
• AIS capacity: listed as 4000 in specs; built-in AIS interface body text references up to 900 targets
• Resolution: 1920×1080 (WUXGA)
• USB Trackball connection: Yes
• Installation accessories: sun covers (size-specific), mounting hardware, gasket tape, documentation
