Boat bearing compass KGC-300

for shipselectronichorizontal

Product name

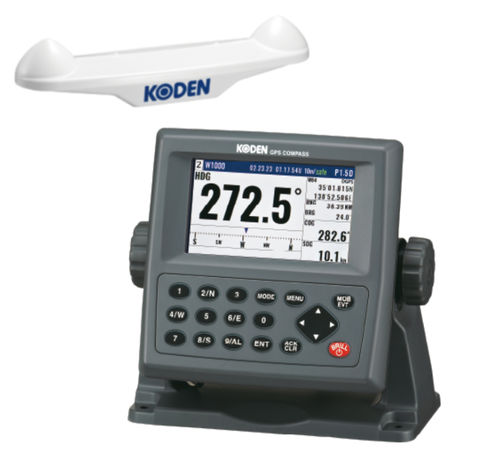

KGC-300 GPS Compass

Features

• Designed for marine safety; compliant with IMO performance standards
• Provides accurate heading, position and speed data for navigation and vessel operations
• Stable and fast satellite tracking with SBAS support (WAAS/EGNOS)
• 4.3-inch high-resolution color LCD with high visibility in bright sunlight
• Five separate heading data output ports for multiple displays and systems

Screen image

• Heading graph display
• Rate of Turn (ROT) display
• Navigation data display

Documentation

• Product brochure (PDF)
• Operation manual (Rev02A)

Main specifications
Receiving frequency: 1575.42 MHz ± 1 MHz
Receiving channels: Parallel 16-channel
Sensitivity: Better than −130 dBm
Position accuracy: GPS 10 m (2drms) / DGPS 3 m (2drms), conditions: SA OFF, PDOP ≤ 3
Heading accuracy: 0.5° rms
Velocity accuracy: 1 m/s (rms), conditions: SA OFF, PDOP ≤ 3
Outputs: 5 heading data output ports
SBAS: WAAS / EGNOS enabled

Technical specifications

• Model: KGC-300
• Type: GPS Compass
• Display: 4.3-inch color LCD, high resolution
• Receiving frequency: 1575.42 MHz ± 1 MHz
• Receiving channels: Parallel 16-channel
• Sensitivity: Better than −130 dBm
• Position accuracy: GPS 10 m (2drms) / DGPS 3 m (2drms)
• Heading accuracy: 0.5° rms
• Velocity accuracy: 1 m/s (rms)
• Outputs: 5 heading data output ports
• SBAS: WAAS / EGNOS enabled
• Documentation: PDF brochure and operation manual (Rev02A)
