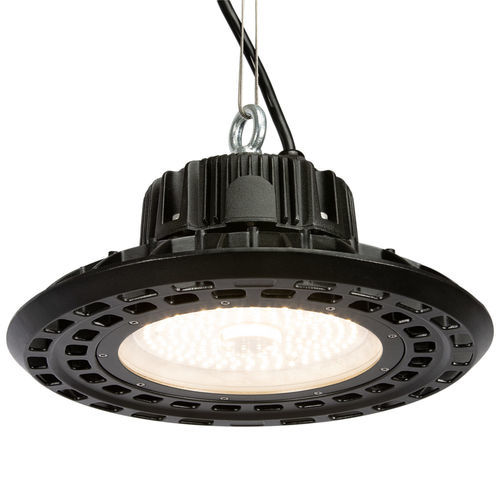

Interior ceiling light JNFB9-150S-3000-A1-IP65-ND

for shipyardsworkshopLED

Product summary
150 Watt LED flat high bay lamp, with original Philips LumiLEDs and Meanwell driver(s), IP65. Non-dimmable. Replaces 400 Watt metal halide/HID/HPS. With integrated reflector.

Features

• Integrated 72°x72° symmetric reflector
• Original Philips Lumileds LEDs
• Meanwell HLG-240H LED driver
• Surge protection: 10kV
• Die-cast aluminum housing in black
• IK08 impact rating
• Non-dimmable

Product specifications
Product SKU: JNFB9-150S-3000-A1-IP65-ND
Power Consumption: 150 W
Input Voltage: 100-305V
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 26200
Colour Temperature (K): 3000
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell HLG-240H
Surge Protection: 10kV
Input Voltage Range: 100~305V AC
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340x340x166 mm
Net Weight (kg): 3.7 kg
Export Carton Dimensions (mm): 360x360x205
Products per Carton: 1
Export Carton Gross Weight (kg): 6.2 kg

Caractéristiques / spécifications techniques

• Power: 150 W
• Voltage: 100-305V AC
• Lumens: 26,200 lm
• Colour Temperature: 3000 K (warm white)
• LED: Philips Lumileds
• Driver: Meanwell HLG-240H
• Beam angle: 72°x72° (symmetric)
• IP Rating: IP65
• IK Rating: IK08
• Power factor: >0.95
• Surge protection: 10kV
• Housing: Die-cast Aluminum, Black
• Operating temperature: -20°C to 45°C
• Relative humidity: 10%–90% RH
• Expected lifespan: 50,000 hours
• Fixture dimensions (mm): 340 x 340 x 166
• Net weight: 3.7 kg
