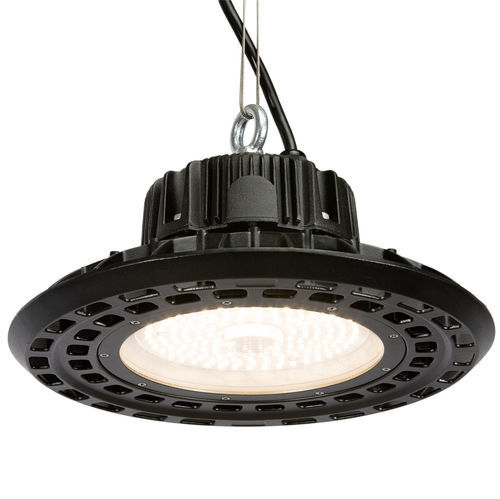

Interior ceiling light JNFB8-120S-3000-A1-IP65-ND

for shipyardsworkshopLED

Short description
120 Watt LED flat high bay lamp with original Philips Lumileds and Meanwell ELG-150 driver, IP65 rated. Non-dimmable. Replaces 300 W metal halide/HID/HPS luminaires. Integrated symmetric 72°x72° reflector for focused illumination.

Product specifications (table)
Product SKU: JNFB8-120S-3000-A1-IP65-ND
Power Consumption: 120 W
Input Voltage: 100-305V AC
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 21,800 lm
Color Temperature (K): 3000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10 kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340x340x166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360x360x205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Specification details
120 Watt LED flat high bay lamp with Philips Lumileds and Meanwell ELG-150 driver. IP65, non-dimmable, retrofit for 300 W HID/metal halide. Integrated symmetric reflector for uniform, focused lighting suitable for industrial and commercial high-ceiling installations.

Technical specifications

• Product SKU: JNFB8-120S-3000-A1-IP65-ND
• Power Consumption: 120 W
• Input Voltage: 100-305 V AC
• Beam Angle: 72°x72°
• IP Rating: IP65
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumens Output: 21,800 lm
• Color Temperature: 3000 K
• IK Impact Rating: IK08
• Dimming Capability: Non-dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• LED Driver Brand: Meanwell ELG-150
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Fixture Dimensions (HxLxW): 166 x 340 x 340 mm
• Number of Lamps: 1
• Beam Angle Range: 100+
• Beam Angle Format: Symmetric
• Working Temperature Range: -20°C to 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
