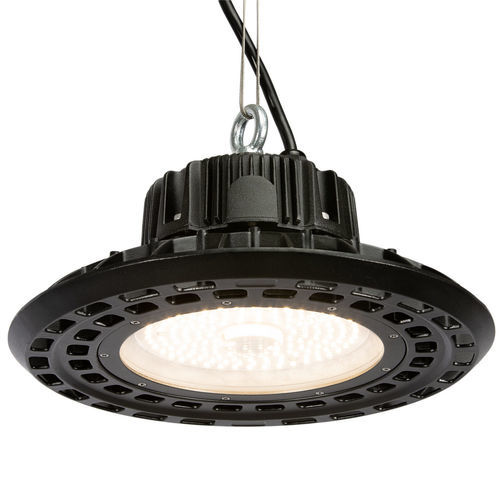

Interior ceiling light JNFB8-120S-5000-A1-IP65-DIM

for shipyardsworkshopLED

Short description
120 Watt LED flat high bay lamp fitted with Philips Lumileds LEDs and Meanwell ELG-150 driver, IP65 rated. Dimmable. Suitable as a retrofit for 300 W metal halide/HID/HPS installations. Integrated 72°x72° symmetric reflector for controlled distribution.

Features

• 120 W power consumption
• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 rated for dust and water resistance
• Dimmable (dimming capability)
• 72° x 72° integrated reflector (symmetric beam)
• IK08 impact rating
• High total lumen output: 21,800 lm
• Power factor >0.95
• Surge protection 10 kV
• Die-cast aluminum housing, black
• Expected lifespan: 50,000 hours

Product specifications (table)
Product SKU: JNFB8-120S-5000-A1-IP65-DIM
Power Consumption: 120 W
Input Voltage: 100-305V (100~305V AC)
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 21800 lm
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 340 x 340 x 166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• SKU: JNFB8-120S-5000-A1-IP65-DIM
• Rated power: 120 W
• Input voltage range: 100–305 V AC
• Driver: Meanwell ELG-150
• LED platform: Philips Lumileds
• Luminous flux: 21,800 lm
• Colour temperature: 5000 K (cool white)
• CRI: >70
• Beam angle: 72° x 72° (symmetric)
• IP rating: IP65
• IK rating: IK08
• Dimming: Yes (dimmable)
• Power factor: >0.95
• Surge protection: 10 kV
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Housing: Die-cast aluminum, black
• Fixture dimensions (mm): 340 x 340 x 166
• Net weight: 3.6 kg
• Expected lifetime: 50,000 hours
• Cable type: H07RN-F 3G1.0
