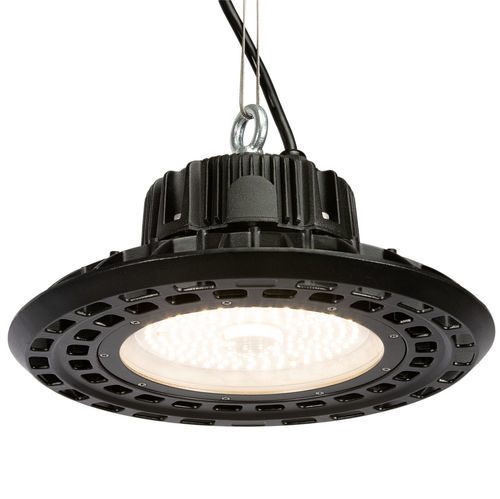

Exterior lighting ceiling light JNFB9-150S-5000-A1-IP65-DIM

indoorfor harborfor hazardous areas

Short description
150 W LED flat high bay luminaire fitted with Philips Lumileds LEDs and Meanwell HLG-240H driver. IP65 rated for dust and water protection. Dimmable. Designed to replace 400 W metal halide/HID/HPS lamps. Integrated symmetrical 72°x72° reflector. SKU: JNFB9-150S-5000-A1-IP65-DIM.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-240H LED driver
• IP65 protection against dust and water
• Dimmable
• 72°x72° integrated symmetric reflector
• Replacement for 400 W metal halide/HID/HPS lamps
• Die-cast aluminium housing, black finish
• Surge protection 10 kV, power factor >0.95

Product Specifications
Product SKU: JNFB9-150S-5000-A1-IP65-DIM
Power Consumption: 150 W
Input Voltage: 100-305 V AC
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumen Output: 26,200 lm
Color Temperature: 5,000 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast aluminum
LED Driver Brand: Meanwell HLG-240H
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Operating Temperature Range: -20°C ~ 45°C
Operating Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340 x 340 x 166 mm
Net Weight (kg): 3.7 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 6.2 kg

Technical specifications

• Power: 150 W
• Voltage: 100-305 V
• Beam angle: 72°x72° (symmetric)
• IP rating: IP65
• CRI: >70
• LED type: Philips Lumileds
• Lumens: 26,200 lm
• Colour temperature: 5,000 K (cool white)
• IK rating: IK08
• Dimming: Yes (dimmable)
• Housing: Die-cast aluminum, black
• Driver: Meanwell HLG-240H
• Surge protection: 10 kV
• Power factor: >0.95
• Operating temperature: -20°C to 45°C
• Operating humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Dimensions: 340 x 340 x 166 mm
• Net weight: 3.7 kg
