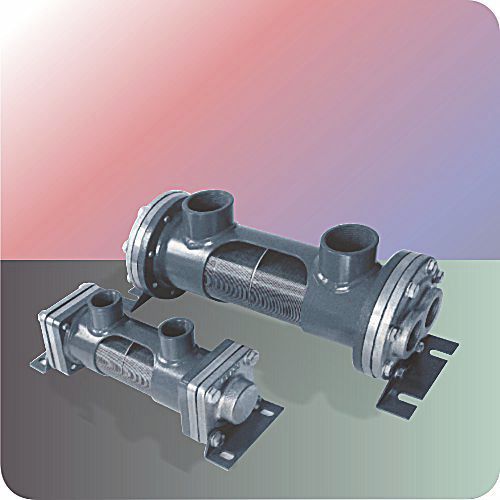

Shell and tube heat exchanger BAESNZ series
for ships

shell and tube heat exchanger
shell and tube heat exchanger
Add to favorites
Compare this product


Characteristics

Type
shell and tube
Application domain
for ships

Description

For a wide range of industrial applications. This range is particularly effective due to the additional cooling area, and offers a heat exchange performance of 1000 kW. This is produced by aluminium fins, which are pushed over the bank of tubes with metal-to-metal contact. The BAESNZ range of heat exchangers has a cooling surface of from 0.43m² to 56m². The BAESNZ series is constructed of 43 basic units. » Aluminium fins ensure large degree of heat exchange. » Cooling capacity up to 1000 kW. » Flow rates up to 1200 lpm. » Optimised for maximum performance. » Flange connections allow cooler to be rotated through 90 degrees. » Maximum pressure 35 bar oil / 16 bar water. » Internal bypass valve available as an option. These further benefits available on request: » Sea water version. » Certifications for marine applications. » Compressed-air application. » Water-Water application. » Stainless steel version or chemically nickel plated.

Catalogs
